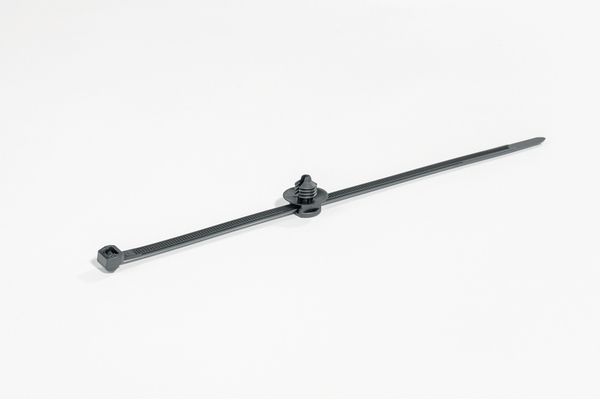

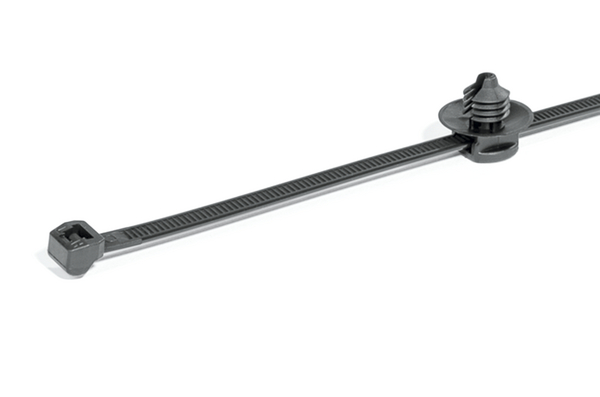

2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes T50SOSFT5

Fir Tree Parts FT5, Article number: 156-06200

Features

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.

Fir Tree Parts FT5 is suitable for following markets and industries

Anti rotation (Yes / No) NO
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Description Short (BMEcat) (max. 150 characters) 2-Piece Fixing Tie with Fir Tree and Disc 150x4.6 black
Fixation Method Fir Tree
Fixing Hole Shape Circular
GLOBAL PART NAME T50SOSFT5-PA66HS/PA66HIRHS-BK
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per Bag
Product Family Fir Tree Parts FT5
Product Group 2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SOSFT5.HB6P
Variant Outside Serrated
Bundle ∅ max. 31.0mm
Bundle ∅ min. 5.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 4.5 - 5.0 mm
for Panel Thickness min - max 0.7 - 3 mm
Height (H) 1.3mm
Height (H2) 6.9mm
Length (L) 150mm
Length (L2) 11.6mm
Length of Fir Tree 6.9mm
Min.Tensile Strength 225N
Thickness (T) 1.3mm
Width (W) 4.6mm
Width (W2) 9.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C
Specifications
EAN / GTIN 4031026232126
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 0.7248kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 8.068kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 117.84kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 2.3kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121717
