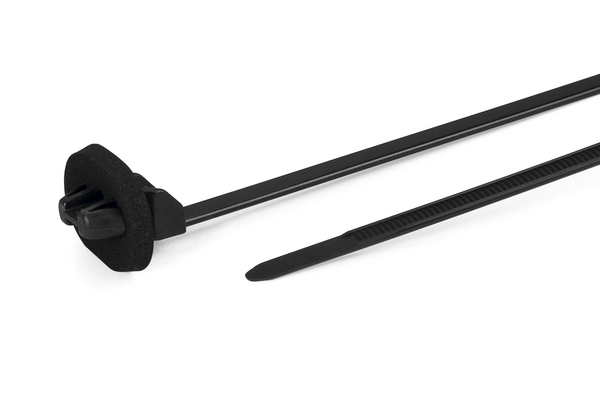

1-Piece Fixing Ties with Arrowhead, with Disc, sealed T60XSOSSFT62X122-E-MD

Fixing Ties, sealed, oval holes, Article number: 126-00208

Features

  • Easy to assemble without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts the tie for pressures from various directions
  • Cable tie head always situated in defined position
  • Cellular rubber seal minimises access of dust, dirt and water
  • SFT versions for oval holes feature anti-twist protection

Certifications & Approvals

Application

The parts are mainly used in the automotive industry, e.g. for door harnesses.

Fixing Ties, sealed, oval holes is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK9P, MK20, MK21, EVO7, EVO9, EVO9HT
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Fixing tie 1-part, sealed, oval holes
Fixation Method Arrowhead for oval holes
GLOBAL PART NAME T60XSOSSFT62X122-E-MD-PA66HS-BK
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per Box
Product Family Fixing Ties, sealed, oval holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Disc, sealed
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T60XSOSSFT62X122-E-MD_PA66HS_D1
Bundle ∅ max. 25.0mm
Bundle ∅ min. 1.5mm
Disc ∅ 16.0 x 22.0mm
for Hole ∅ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 0.7 - 2 mm

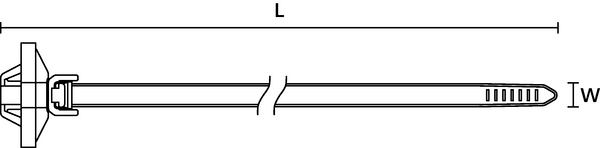

Length (L) 133.6mm
Min.Tensile Strength 300N
Width (W) 5.5mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS)
Specifications
EAN / GTIN 4031026479118
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.38m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.03268
Packaging 1 - Weight (kg) 1.0105kg
Packaging 1 - Width (m) 0.43m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 6.883kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 103.632kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000046
ETIM 6.0 EC000046
