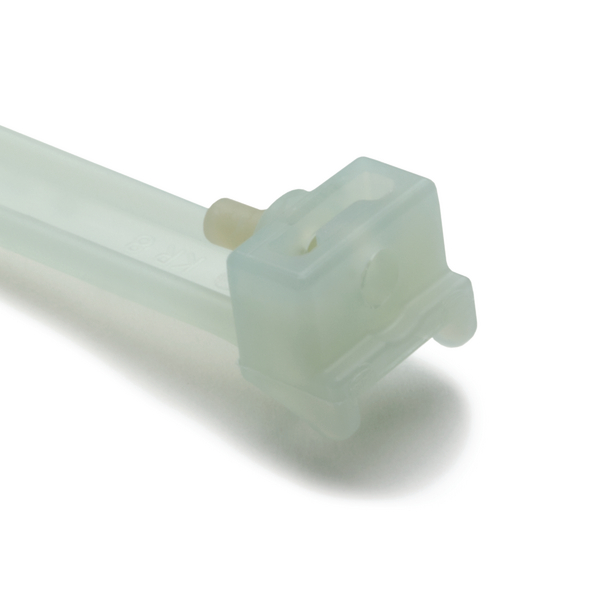

Cable Tie locked by glass fibre pin KR8/21

KR-Series, 1-Piece , Article number: 121-82119

Features

  • Patented cable tie system
  • Smooth strap which is locked into place with a glass-fibre reinforced pin
  • For assembly a special KR-tool is needed
  • Very secure and vibration resistant fixing
  • KR-ties up to 426 mm are made as one piece fastening
  • Available in various materials, including PA12 which is less hygroscopic

Certifications & Approvals

Application

In addition to offering a secure method of bundling cables, the design of the KR-ties makes them ideal for use as a method of securing bellows on steering racks, water hoses and vacuum lines.

KR-Series, 1-Piece is suitable for following markets and industries

Application Tool KR6/8, KR8PNSE
Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Cable Tie locked by glass fibre pin 210x8.0 natural
Fixation Method Cable Tie
GLOBAL PART NAME KR8/21-PA66-NA
Identification Plate Position none
Pack Cont. 50pcs.
Package Quantity per pieces
Product Family KR-Series, 1-Piece
Product Group Cable Tie locked by glass fibre pin
Releasable Closure (Yes/No) No
Tie Closure fibreglass pin
Type KR8-21.NN2P
Variant No Serration
Bundle ∅ max. 47.0mm
Bundle ∅ min. 8.0mm
Cable Tie Head Height (Metric) 7.5mm
Cable Tie Head Length (metric) 8mm
Cable Tie Head Width (metric) 11.6mm
Length (L) 210mm
Min.Tensile Strength 785.0N
Strap Width max. (G) (imperial) 0.46"
Thickness (T) 2.3mm
Width (W) 8.0mm
ELV compliant Dir. Art. 4 (2) YES
EN 45545-2 Results R23 HL3, R22 HL2
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Operating Temperature Head (Metric) -40 °C to +85 °C, (+105 °C, 500 h)
Specifications
Specifications IEC 62275:2006, NF EN 45545-2
EAN / GTIN 4031026114149
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00186
Packaging 1 - Weight (kg) 0.17225kg
Packaging 1 - Width (m) 0.31m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 1000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0171
Packaging 3 - Weight (kg) 3.665kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.171m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.124
Packaging 4 - Weight (kg) 196.68kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 2.86kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
