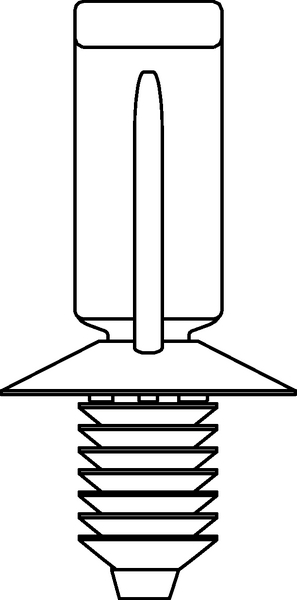

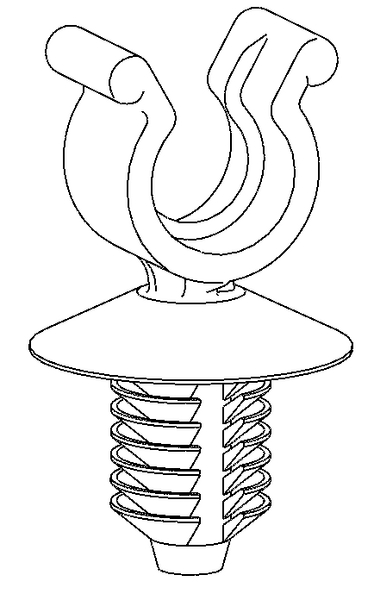

Corrugated tube clip for hole (round), nom∅4.5mm, black, 500pcs.
Art.-No. 151-14314 | CTC4.5FT6LG-PA66HIRHS-BK Details

  • CTC clamps for a variety of nominal diameters
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
  • Tube is guided accurately by clicking
  • Axial slipping is prevented by the inside profile of the clamp
Show more

Request your individual offer now

Application CTC clamps are used for example in the automobile, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.
Colour Black (BK)
Conduit ∅ IWS 4,5
Fixation Method Fir Tree
Key product features for convoluted tubes or with rib, reusable, removable
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CTC4.5FT6LG-PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family CTC-Series
Product Group Fixing elements for corrugated tubing, with fir tree
Short Description Fixing Elements with Fir Tree for Corrugated Tubing black
Type CTC4.5FT6LG
Attach to Ø NW4.5
Disc ∅ 16.0mm
Height (H) 16.1mm
Height (H2) 11.1mm
Nominal ∅ 4.5mm
Weight/Unit 0.00084kg
Width (W) 8.0mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.8 - 6 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Nato number 5340-12-380-9575
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026237817
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 0.503478kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 12000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.903472kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 144000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 175.704kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
