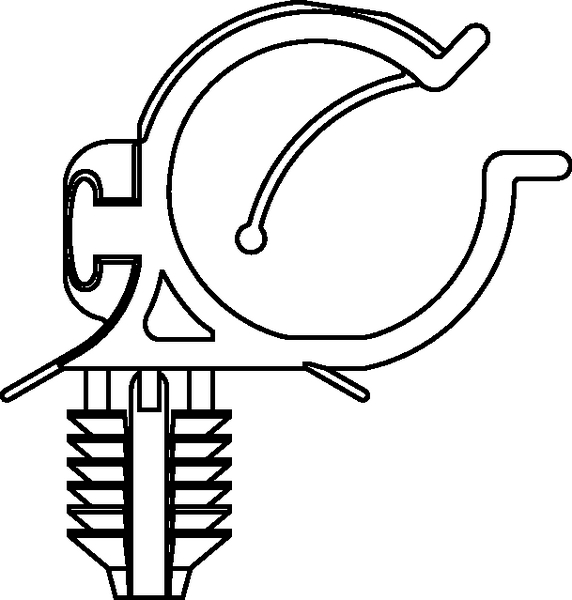

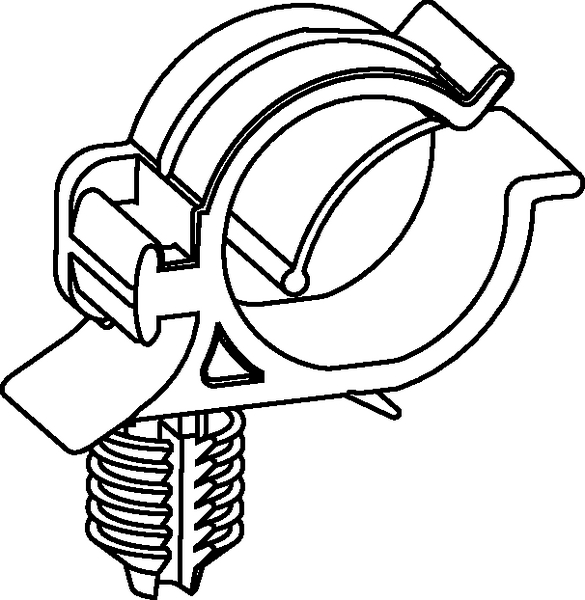

Corrugated tube clip for hole (round)/with pipe/tube holder, nom∅8.0mm, black, 500pcs.
Art.-No. 151-01543 | CTC8FT6-PA66HIRHS-BK Details

  • CTC clamps for a variety of nominal diameters
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
  • Tube is guided accurately by clicking
  • Axial slipping is prevented by the inside profile of the clamp
Show more

Request your individual offer now

Application CTC clamps are used for example in the automobile, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.
Colour Black (BK)
Fixation Method Fir Tree
Key product features for convoluted tubes or with rib, removable
Local order number CTC8FT6-HIRHS-BK
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CTC8FT6-PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family CTC-Series
Product Group Fixing elements for corrugated tubing, with fir tree
Short Description Convoluted Tubing Clip, round holes 6.1 - 6.9 mm/6.35 mm (hexagonal), fir tree, high impact modified, heat stabilised, black

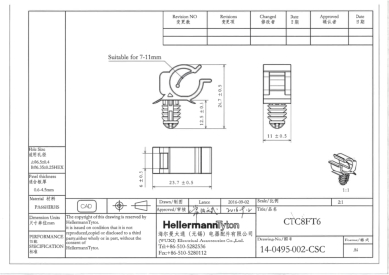

Type CTC8FT6
Attach to Ø NW8
Height (H) 14.2mm
Height (H2) 12.5mm
Length (L) 23.7mm
Nominal ∅ 8.0mm
Panel Thickness max. 0.6 - 4.5mm
Width (W) 6.0mm
for Hole ∅ (FH) 6.1 - 6.9 mm, 6.35 mm (hexagonal)
for Panel Thickness min - max 0.6 - 4.5 mm
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin CN
GTIN-13 / EAN 4031026547008
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
