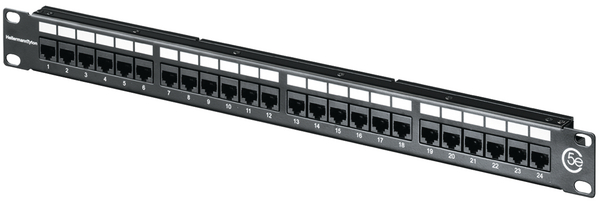

Universal 110 Category 5e PP110C5E24

1U 24 Port Panel, Article number: 853-20075

Features

  • Exceeds Category 5e performance standards
  • Configured for T568A and T568B wiring
  • 110 punch down IDC
  • Write-on labels provided for easy identification
  • Optional rear cable manager available
  • Available with or without Rack Snaps
  • Backward compatible with Category 5 and voice applications
Colour Black (BK)
Description The Universal 110 Category 5e range of patch panels offer exceptional performance and are also available in 1U 48 port, 2U 48 port and 12 port vertical configurations. The 1U 24 port panel is constructed of 4 modular units, each offering 6 RJ45 ports allowing for any of the 6 port modules to be replaced if damaged at any stage during installation. The Universal 110 1U 24 Port Panel is supplied with or without Rack Snap mounting fixings and a rear cable manager is also available. The Universal 110 Category 5e products are designed to support any data or voice protocol that is capable of running over a Category 5e cabling system.
Features and Benefits • 6 port modules can be replaced easily if damaged during installation • Front face provides an attractive, flush appearance • Write-on labels provided for easy identification • Self-adhesive labels are available for use with HellermannTyton TagPrint Pro software* • Universal panels are pre-assembled with T568B wiring; however, they can be used for both T568A and T568B wiring configurations, thus eliminating the need for extra inventory • HellermannTyton offers a very simple, easy-to-install rear cable manager which is recommended for all Category 5e installations • Sturdy and smooth rolled edges • Clear plastic channel protects PCB and allows easy viewing of wiring label
GLOBAL PART NAME PP110C5E24
Pack Cont. 1
Package Quantity per Box
Performance Category Category 5E (Class D)
Port count 24
Product Family 1U 24 Port Panel
Product Group Universal 110 Category 5e
Technical Description The panels are manufactured with 110 IDC punch down blocks and are supplied with a clear plastic channel which protects the PCB and allows for easy viewing of the wiring label. The panel is screen printed and offers write-on labelling fields for easy port identification. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 5e. The Universal 110 Category 5e 1U 24 Port Panel offers backward compatibility with Category 5 and voice products.
Type PP110C5E24

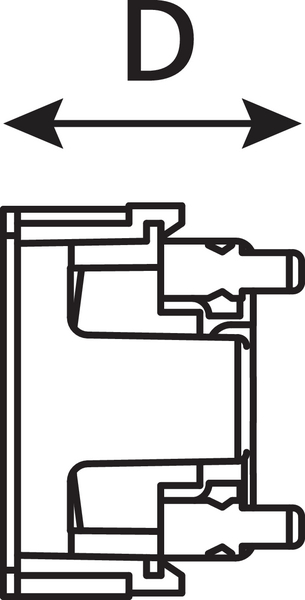

Depth (D) 34.0mm
Height (H) 44.0mm
Height, Units 1U
Width (W) 483.0mm
Dimensions W x H x D 483.0 mm x 44.0 mm x 34.0 mm
EAN / GTIN 5022660839412
UNSPSC Key 43223309
