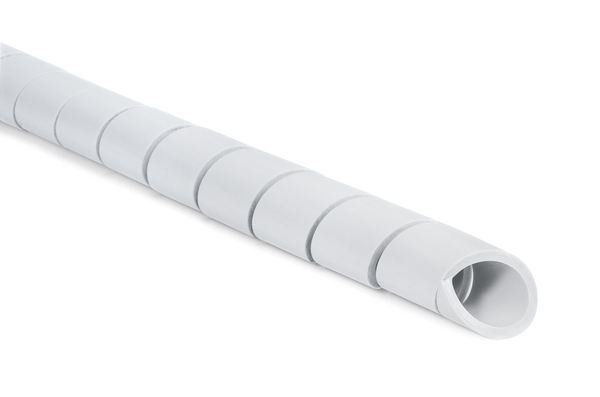

Standard Polyethylene Spiral Binding for general applications SBPE16

SBPE, Article number: 161-41303

Features

  • Organises and protects cables and hoses
  • Suitable for retro-fitting
  • Cables branch out at any point
  • Wide range of diameters and colours

Certifications & Approvals

Application

SBPE spiral binding is suitable for standard electrical applications and panel building and plant engineering. Sizes 4 and 9 are also available in practical 5 metre lengths.

SBPE is suitable for following markets and industries

Application 2 Available in flame retardant PA6 (SBPAV0) and high performance PTFE (SBPTFE).
Colour Grey (GY)
Features and Benefits A versatile way of protecting and tidying wires, cables and tubes, wires can easily be broken out at any point. Available in flame retardant polythene.
GLOBAL PART NAME (auto set) SBPE16-PE-GY
Pack Cont. 30m
Package Quantity per Reel
Product Family SBPE
Product Group Standard Polyethylene Spiral Binding for general applications
Variant Spiral Binding
Bundle ∅ max. 150mm
Bundle ∅ min. 20mm
Bundlediamter Range ETIM (Braided Sleeving) 20-150
Nominal ∅ 16mm
Nominal ∅ (imperial) 5/8"
Pitch (P) 16.0mm
Wall (WT) 1.6mm
∅ (D) 16mm
Flammability UL 94 HB
Halogenfree Yes
Intermittent Operating Temperature +120°C
Material Polyethylene (PE)
Operating Temperature - °C -60 °C to +80 °C, intermittent +120 °C
Specifications
EAN / GTIN 5022660651618
Reel Length 30m
ETIM 5.0 EC002604
ETIM 6.0 EC002604
