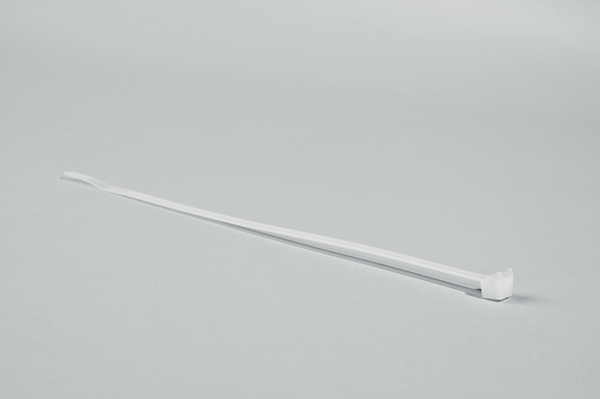

Cable Ties for hose and gaiter CTT20R
CTT-Series natural and black , Article number: 112-51960
Features
- Curved design of head offers a good fit to the bundle
- Inside serration for a positive hold onto bundles
- Easy application either manually or with a processing tool
Certifications & Approvals
Application
Designed to secure pipes, hoses and gaiters where low pressures are being secured. These ties can be used in many industries, including automotive, white goods manufacturing, medical and construction.
CTT-Series natural and black is suitable for following markets and industries
More products in this product group
Cable Ties for hose and gaiter >| Application Tool | MK3PNSP2, MK3SP, MK20, EVO7 |
| Colour | Black (BK) |
| Description Short (BMEcat) (max. 150 characters) | Cable Tie for hose and gaiter 100x2.5 PA66HS black |
| GLOBAL PART NAME | CTT20R-PA66HS-BK |
| Identification Plate Position | none |
| Pack Cont. | 1000pcs. |
| Package Quantity per | Bag |
| Product Family | CTT-Series natural and black |
| Product Group | Cable Ties for hose and gaiter |
| Releasable Closure (Yes/No) | No |
| Short Description | 4", 20 lb., clamp tie, black, 1000/bag |
| Tie Closure | plastic pawl |
| Type | CTT20R.HB7P |
| Variant | Inside Serrated |
|
|
| Bundle ∅ max. | 13.0mm |
| Bundle ∅ min. | 1.6mm |
| Length (L) | 101.6mm |
| Min.Tensile Strength | 90.0N |
| Thickness (T) | 1.1mm |
| Width (W) | 2.5mm |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +125 °C |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL Listed (US and Canada) | No |
| UL OCD link |
ZODZ.E64139 ZODZ2.E64139 ZODZ7.E64139 ZODZ8.E64139 |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E64139 |
| EAN / GTIN | 4031026108148 |
| Packaging 1 - Height (m) | 0.038m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00161m³ |
| Packaging 1 - Weight (kg) | 0.285kg |
| Packaging 1 - Width (m) | 0.141m |
| Packaging 3 - Height (m) | 0.145m |
| Packaging 3 - Length (m) | 0.512m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0234m³ |
| Packaging 3 - Weight (kg) | 3.36kg |
| Packaging 3 - Width (m) | 0.315m |
| Packaging 4 - Height (m) | 1.16m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 280000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.114m³ |
| Packaging 4 - Weight (kg) | 115.08kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.00062lbs |
| Weight | 0.285kg |
| ETIM 5.0 | EC000046 |
| ETIM 6.0 | EC000046 |
| UNSPSC Key | 39121703 |
