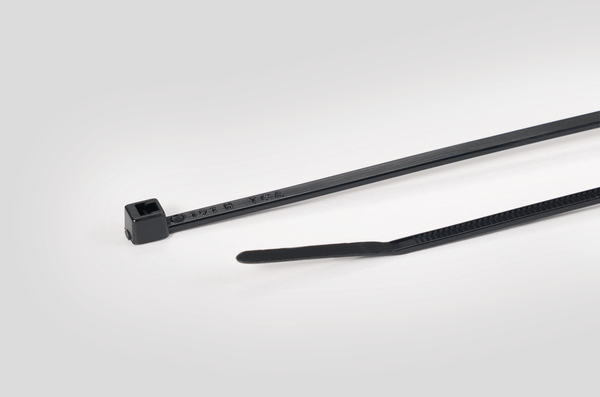

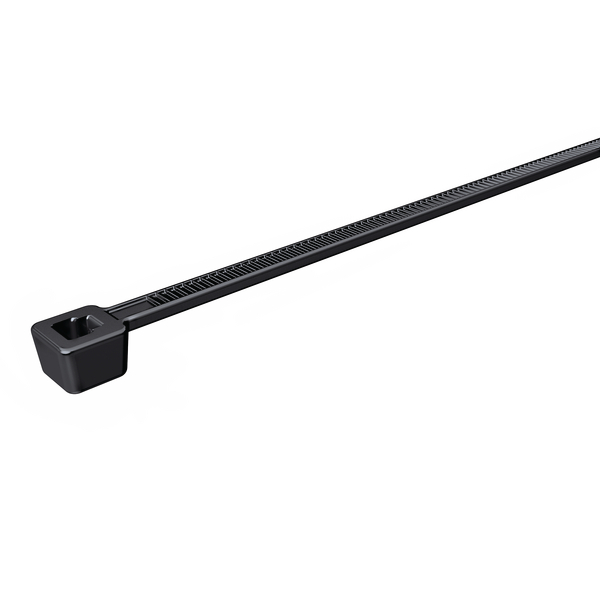

Cable Ties Polyamide 6.6 standard T18R

T-Series, Article number: 111-01910

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool

Certifications & Approvals

Application

These cable ties are used for routing, bundling and securing of cables, pipes and hoses.

T-Series is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Cable Tie 100x2.5 black
Fixation Method None
GLOBAL PART NAME T18R-PA66-BK
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per pieces
Product Family T-Series
Product Group Cable Ties Polyamide 6.6 standard
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T18R.NB3P
Variant Inside Serrated
Bundle ∅ max. 22.0mm
Bundle ∅ min. 1.5mm
Length (L) 100.0mm
Min.Tensile Strength 80N
Thickness (T) 1.0mm
Width (W) 2.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C, (+105 °C, 500 h)
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, IEC 62275:2006
UL-File Number E85319 [Canada]
EAN / GTIN 4031026104218
Packaging 1 - Height (m) 0.014m
Packaging 1 - Length (m) 0.14m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00013
Packaging 1 - Weight (kg) 0.03kg
Packaging 1 - Width (m) 0.065m
Packaging 2 - Height (m) 0.188m
Packaging 2 - Length (m) 0.136m
Packaging 2 - Qty 8000
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0096
Packaging 2 - Weight (kg) 2.54kg
Packaging 2 - Width (m) 0.377m
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 32000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 10.91kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.24m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 640000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.19
Packaging 4 - Weight (kg) 239.2kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 0.028kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
