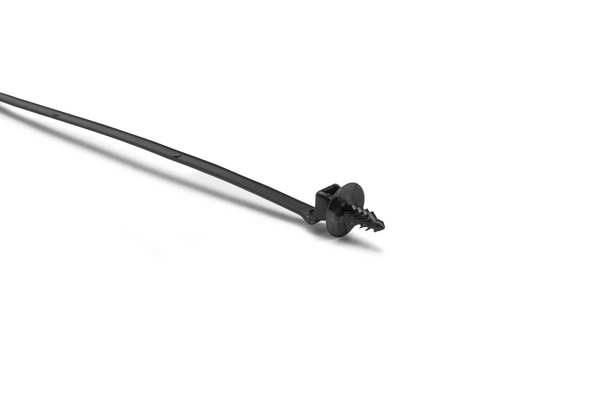

1-Piece Fixing Ties with Fir Tree, with Disc T50ROSFTQM6

1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes, Article number: 157-00112

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool

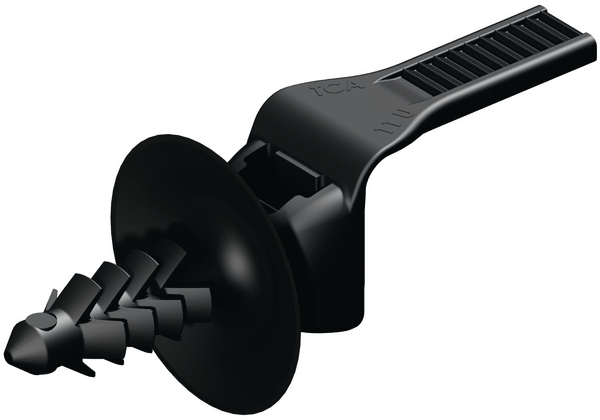

  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses

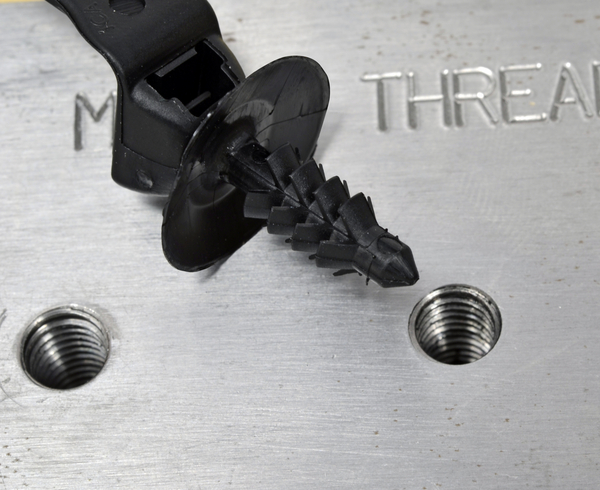

  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.

1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Fixation Method Fir Tree
GLOBAL PART NAME T50ROSFTQM6-PA66HIRHSUV-BK
Identification Plate Position none
Pack Cont. 500
Package Quantity per Bag
Product Family 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type 157-00112
Bundle ∅ max. 50.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 7.9mm
for Hole ∅ (FH) M6
for Panel Thickness min - max 0.6 - 7 mm
Height (H) 13.83mm
Length (L) 203.6mm
Length (L2) 16.13mm
Min.Tensile Strength 225N
Width (W) 5.08mm
∅ (D) 6.0mm
∅ D (imperial) 0.25"
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous goods No
Material Polyamide 6.6, high impact modified, heat and UV stabilised (PA66HIRHSUV)
Operating Temperature - °C -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026433066
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.295m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00959
Packaging 1 - Weight (kg) 0.845kg
Packaging 1 - Width (m) 0.25m
Packaging 3 - Height (m) 0.225m
Packaging 3 - Length (m) 0.605m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0538
Packaging 3 - Weight (kg) 5.917kg
Packaging 3 - Width (m) 0.395m
Packaging 4 - Height (m) 1.24m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 45000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.19
Packaging 4 - Weight (kg) 109.755kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
