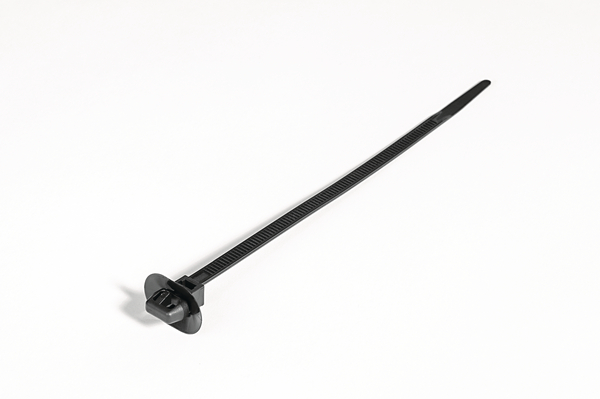

1-Piece Fixing Tie with Arrowhead, with Disc T50SDOR

1-Piece Fixing Tie with Arrowhead, with Disc, for Oval Holes, Article number: 126-01600

Features

  • Easy to install without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressures from various directions and minimises access of dust, dirt and water
  • Cable tie head always situated in a defined position
  • Versions for oval holes feature anti-twist protection

Certifications & Approvals

Application

With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.

1-Piece Fixing Tie with Arrowhead, with Disc, for Oval Holes is suitable for following markets and industries

Application Tool MK6, MK9P
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 1-Piece Fixing Tie with Arrowhead and Disc PA66HS 160x5 mm black
Fixation Method Arrowhead for oval holes
GLOBAL PART NAME T50SDOR-PA66HS-BK
Identification Plate Position none
Pack Cont. 750pcs.
Package Quantity per Bag
Product Family 1-Piece Fixing Tie with Arrowhead, with Disc, for Oval Holes
Product Group 1-Piece Fixing Tie with Arrowhead, with Disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SDOR.HB9A
Variant Inside Serrated
Bundle ∅ max. 30.0mm
Bundle ∅ min. 5.0mm
Disc ∅ 22.0mm
for Hole ∅ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 0.5 - 1.5 mm
Length (L) 160.0mm
Min.Tensile Strength 225N
Thickness (T) 1.3mm
Width (W) 5.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C
Specifications
EAN / GTIN 5022660326455
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.61m
Packaging 1 - Qty 750
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0093
Packaging 1 - Weight (kg) 0.114kg
Packaging 1 - Width (m) 0.305m
Packaging 3 - Height (m) 0.124m
Packaging 3 - Length (m) 0.389m
Packaging 3 - Qty 750
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0137
Packaging 3 - Weight (kg) 0.114kg
Packaging 3 - Width (m) 0.284m
Packaging Content SKU Unit pieces
Weight 0.152kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
