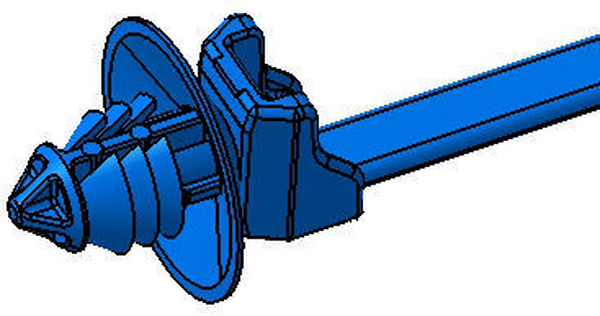

Fixing tie for hole (round), outside serrated, Ø1.0-35.0mm, natural, 5000pcs.
Art.-No. 157-00058 | T50SOSFT6E1-PA66HIRHS-NA Details

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i
Colour Natural (NA)
Fixation Method Fir tree for round holes
Identification Plate Position none
Local order number T50SOSFT6E1-NA-M1
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont. 5000pcs.
Package Content packed in Bag
PART DESCRIPTION T50SOSFT6E1-PA66HIRHS-NA
Product Family Fir tree parts FT6
Product Group 1-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Outside Serrated
Bundle Diameter max (Metric) 35.0mm
Bundle ∅ 1.0-35.0mm
Bundle ∅ min. 1.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.3 - 7.0 mm
for Panel Thickness min - max 0.7 - 3 mm
Length (L) 161.4mm
Min.Tensile Strength 150N
Weight/Unit 0.001443kg
Width (W) 4.7mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026299877
Packaging 1 - Qty 5000
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 7.281663kg
Packaging 3 - Height (m) 0.538m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.1213
Packaging 3 - Weight (kg) 8.381663kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 88.056kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
