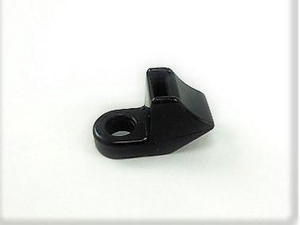

Screw Fixing Mounts CL8

LKM / CL / FH with curved design for sideways fixing, Article number: 151-26860

Features

  • Screw mounts for fixing cable sideways
  • Ideal for securing large, heavier bundles
  • Suitable for cable ties up to 8 mm wide

Certifications & Approvals

Application

In areas with limited space, these mounting bases allow the cable to be offset from the fixing hole, and can be installed in the equipment prior to the cable installation. A major cost saving can be made by using these products as many different sizes of standard cable ties can be used, reducing the need to stock a wide range of specific fixing ties.

LKM / CL / FH with curved design for sideways fixing is suitable for following markets and industries

Colour Black (BK)
Description Cable Tie Mount CL8
Description Short (BMEcat) (max. 150 characters) Screw Fixing Mounts with curved design 27.3x12.5 mm, sideways fixing, UV-resistant, black
Fixation Method Screw Mounting and Rivet
GLOBAL PART NAME CL8-PA66W-BK

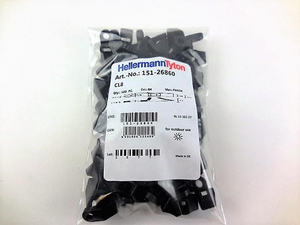

Pack Cont. 100pcs.
Package Quantity per pieces
Product Family LKM / CL / FH with curved design for sideways fixing
Product Group Screw Fixing Mounts
Type CL8.WB3P
for Hole ∅ (FH) 6.5 mm
Height (H) 16.0mm
Height (H2) 5.0mm
Length (L) 27.3mm
Strap Width max. (G) 8.0mm
Width (W) 12.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous goods No
Material Polyamide 6.6, UV-resistant (PA66W)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4031026122489
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.125m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00138
Packaging 1 - Weight (kg) 0.185437kg
Packaging 1 - Width (m) 0.22m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 2000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0171
Packaging 3 - Weight (kg) 3.92874kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.171m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.124
Packaging 4 - Weight (kg) 209.448kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 1.6kg
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121717
