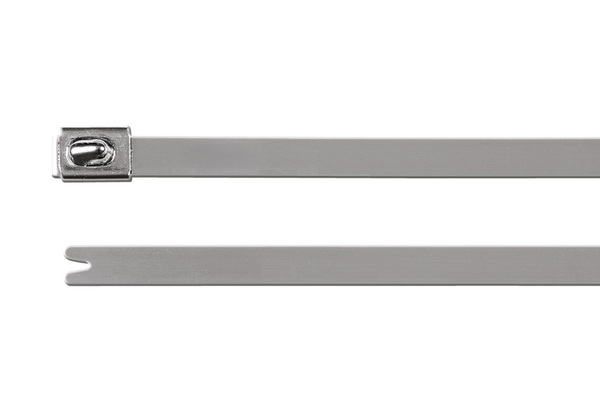

Cable ties with ball-lock MBT8S

MBT-Series, stainless steel 316, Article number: 111-93089

Features

  • MBT cable ties made from stainless steel 316
  • Patented non-releasable locking feature
  • Corrosion resistant
  • Weather resistant
  • Outstanding chemical resistance
  • Antimagnetic
  • High temperature resistance
  • Non-burning

Certifications & Approvals

Application

Metal ties are ideal for all applications that require high strength, reliability and fire resistance. The MBT range of stainless steel cable ties can be used in chemical industries and on oil platforms as well as in mass transit, shipbuilding and mining industries. MBT ties are also suitable for machine building, apparatus construction and in the outside area of radio technology. Additionally, MBT ties are ideal for securing lighting in theatres and exhibition halls.

MBT-Series, stainless steel 316 is suitable for following markets and industries

Application 2 The stainless steel cable tie range can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. Used in all industries from Mass Transit, Ship building, oil rigs, mining, and chemical to theatres and exhibition halls. In the event of a fire, cables will remain securely held in place and will not fall to block emergency exits.
Application Tool KST-STG200, HDT16, MK9SST, MK9PSST
Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Metal Cable Tie with Ball-Lock 201x4.6 mm
Features and Benefits MBT (Metal Ball Bearing Ties) ties have a non-releasable locking feature and offer infinite adjustment within their length. The MLT ties are a heavy duty type ties, once installed they can be opened and re-used if required. MAT ties are similar in design to conventional 'plastic' cable ties and work on a ratchet system. These ties are available in both types 316 and 304 stainless steels.
Fixation Method None
GLOBAL PART NAME MBT8S-SS316-ML
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family MBT-Series, stainless steel 316
Product Group Cable ties with ball-lock
Releasable Closure (Yes/No) No
Tie Closure ball bearing lock
Type MBT8S.M3P
Variant No Serration
Bundle ∅ max. 50.0mm
Bundle ∅ min. 12.0mm
Length (L) 201.0mm
Min.Tensile Strength 900.0N
Thickness (T) 0.3mm
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability Non burning
Halogenfree Yes
Hazardous goods No
Limited Fire Hazard Yes
Material Stainless Steel (SS316)
Operating Temperature - °C -80 °C to +538 °C
Specifications
Specifications IEC 60092, IEC 62275:2006
EAN / GTIN 5022660020612
Packaging 1 - Height (m) 0.022m
Packaging 1 - Length (m) 0.241m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0005
Packaging 1 - Weight (kg) 0.29kg
Packaging 1 - Width (m) 0.095m
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.3m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0117
Packaging 3 - Weight (kg) 11.6kg
Packaging 3 - Width (m) 0.195m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 137.0kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 6kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
