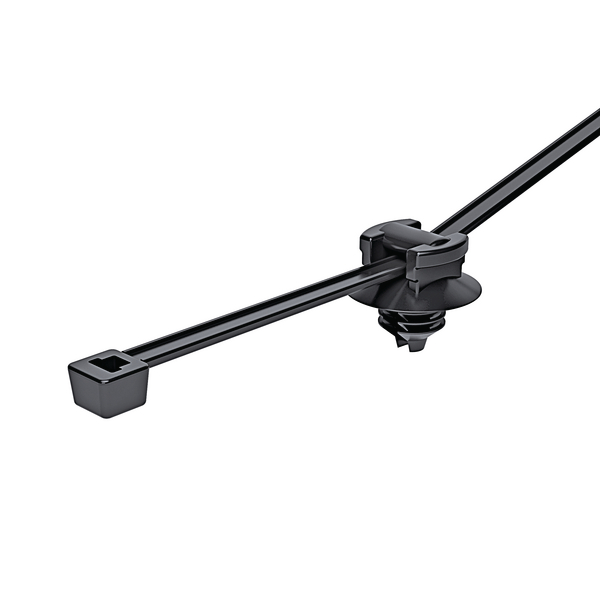

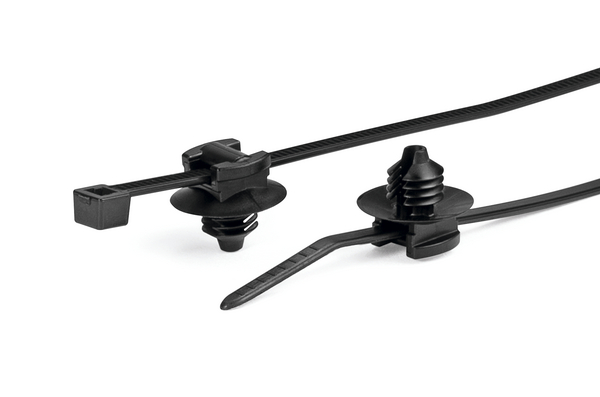

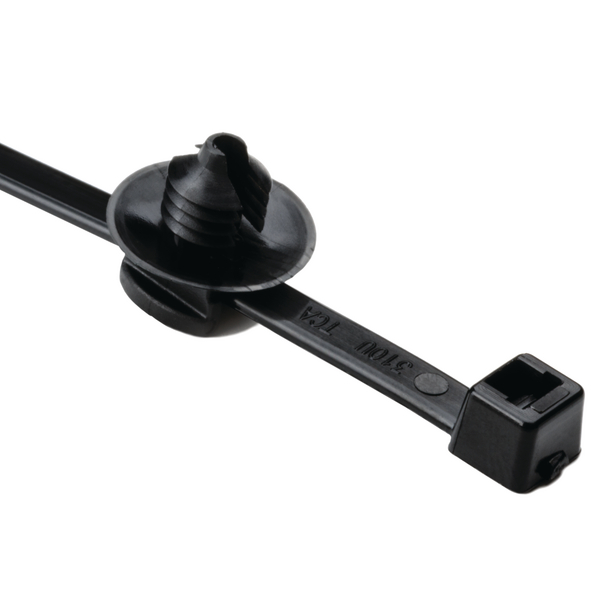

2-Piece Fixing Ties with Fir Tree, with Disc T30RFT6SD

Fir Tree Parts FT6, Article number: 150-52690

Features

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Fir Tree Parts FT6 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 2-Piece Fixing Tie with Fir Tree and Disc 150x3.5 black
Fixation Method Fir Tree
Global Part Name T30RFT6SD-PA66HS/PA66HIRHS-BK
Identification Plate Position none
Manufacturer Type T30RFT6SD PA66HS/PA66HIRHS BK 500
Pack Cont. 500pcs.
Product Family Fir Tree Parts FT6
Product Group 2-Piece Fixing Ties with Fir Tree, with Disc
Quantity per Bag
Tie Closure plastic pawl
Type T30RFT6SD.HB6P
Variant Inside Serrated
Bundle ∅ max. 35.0mm
Bundle ∅ min. 1.5mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.4 - 7.1 mm
for Panel Thickness min - max 0.8 - 3 mm
Height (H) 1.1mm
Height (H2) 7.5mm
Length (L) 148.0mm
Length (L2) 11.6mm
Length of Fir Tree 7.5mm
Min.Tensile Strength 135N
Thickness (T) 1.1mm
Width (W) 3.6mm
Width (W2) 9.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C
Specifications
EAN / GTIN 4031026200385
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 0.6248kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.371m
Packaging 3 - Length (m) 0.414m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0488
Packaging 3 - Weight (kg) 6.868kg
Packaging 3 - Width (m) 0.318m
Packaging 4 - Height (m) 1.258m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 90000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.208
Packaging 4 - Weight (kg) 144.66kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 1.5kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
