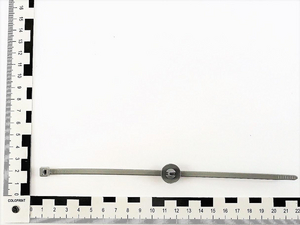

2-Piece Fixing Ties with Fir Tree, with Disc T50RFT6

Fir Tree Parts FT6, Article number: 156-01291

Features

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Fir Tree Parts FT6 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Grey (GY)
Fixation Method Fir Tree
Global Part Name T50RFT6-PA46-GY
Identification Plate Position none
Manufacturer Type T50RFT6 PA46 GY 250

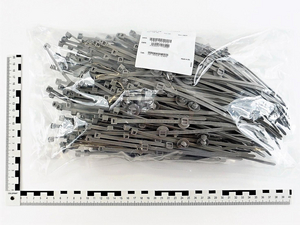

Pack Cont. 250pcs.
Product Family Fir Tree Parts FT6
Product Group 2-Piece Fixing Ties with Fir Tree, with Disc
Quantity per Bag
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50RFT6_PA46_GY
Variant Inside Serrated
Bundle ∅ max. 45.0mm
Bundle ∅ min. 4.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.4 - 7.1 mm
for Panel Thickness min - max 0.8 - 3 mm
Height (H2) 7.5mm
Length (L) 202mm
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Width (W) 4.6mm
Cable Tie Polyamide 4.6 (PA46)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Foot Part Polyamide 4.6 (PA46)
Hazardous goods No
Material Polyamide 4.6 (PA46)
Operating Temperature - °C -40 °C to +150 °C (5000 h), +195 °C (500 h)
Operating Temperature Foot Part (Metric) -40 °C to +150 °C (5000 h), +195 °C (500 h)
Specifications
EAN / GTIN 4031026491103
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 250
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.03555
Packaging 1 - Weight (kg) 0.5575kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 9.74kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 137.976kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000046
ETIM 6.0 EC000046
