Cable Management Accessories : APARCM2U

Angled Rear Cable Manager, Article number: 854-05155


  • Provides cable strain relief
  • Available in 1U or 2U versions
  • Maximum of 72 cables using 2U version
Colour Black (BK)

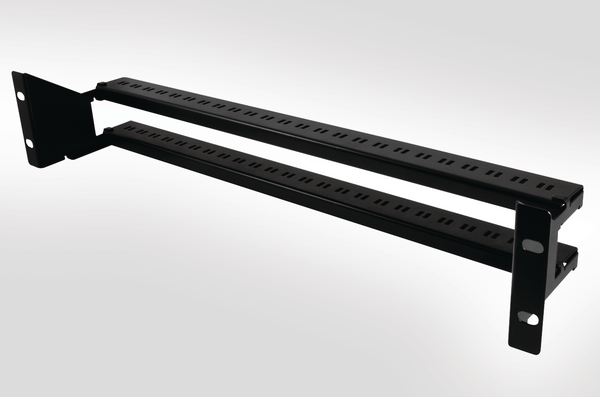

Description The HellermannTyton Angled Rear Cable Managers fit easily on to the HellermannTyton range of angled panels. The Angled Rear Cable Manager comes in 1U and 2U versions and is manufactured from 1.6mm matt black powder coated mild steel. The 1U version is suitable for use with any HellermannTyton angled 1U 24 port, 1U port or 2U 48 port panel providing strain relief for a maximum of 48 cables. The 2U version can be used with any HellermannTyton 2U angled panel providing strain relief for a maximum of 72 cables.
Package Quantity per Box
Product Family Angled Rear Cable Manager
Product Group Cable Management Accessories

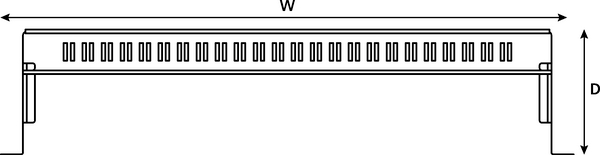

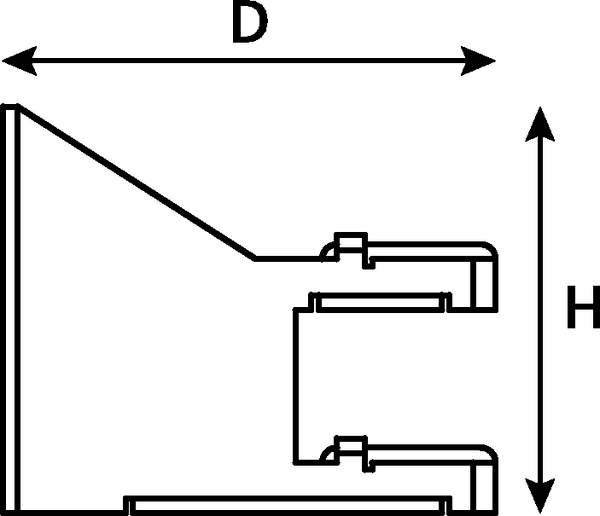

Depth (D) 107mm

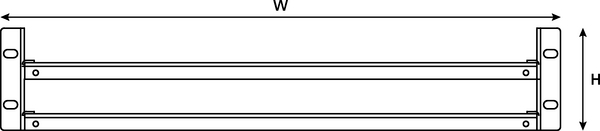

Height (H) 88mm
Width (W) 483mm
Dimensions W x H x D 483 mm x 88 mm x 107 mm
EAN / GTIN 5022660123115
ETIM 6.0 EC002624
ETIM 7.0 Key EC002624
