27mm Single Gang Back Box
Art.-No. 854-35181 | ASBB01-27MM/WH |

Copied

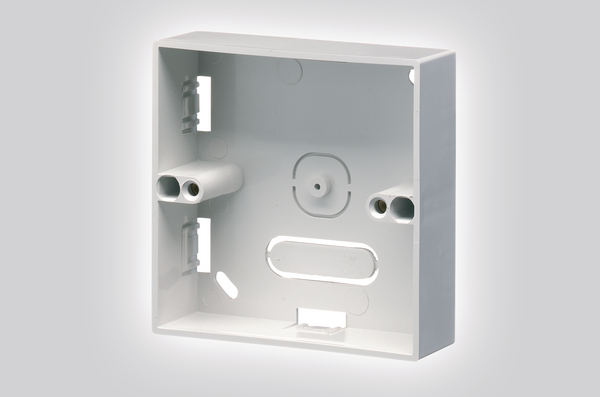

Single 27mm Back Box

    This product is not available anymore.
    • ABS plastic
    • Compatible with HellermannTyton faceplate range
    • Surface mountable
    • Multiple cable entry points
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour White (WH)
    Description Single gang back box is designed to work with the HellermannTyton single gang faceplate range. Made from ABS each back box features multiple cable entry knockout points.
    Local order number ASBB01-27MM/WH
    PART DESCRIPTION ASBB01-27MM/WH
    Pack Cont. 1pc.
    Product Family 86x86mm - Single Gang
    Product Group 27mm Single Gang Back Box
    Type ASBB01-27MM/WH
    Depth (D) 27mm
    Gang Size single gang
    Height (H) 86mm
    Width (W) 86mm
    ELV compliant Dir. Art. 4 (2) YES
    Country of Origin GB
    Customs Number 85389099

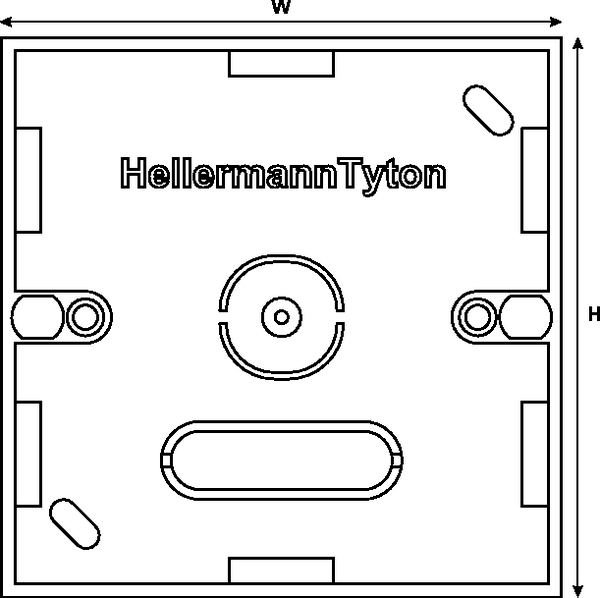

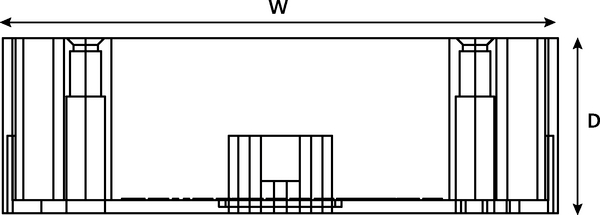

    Dimensions W x H x D 86 mm x 86 mm x 27 mm
    GTIN-13 / EAN 5022660857157
    Packaging 1 - Qty 1
    Packaging 1 - Weight (kg) 0.1kg
    Packaging 2 - Qty 0
    Packaging 3 - Qty 0
    Packaging 4 - Qty 0
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
