Out Of Rack - 3U RapidNet
Art.-No. 854-20024 | RNAORC1 |

Copied

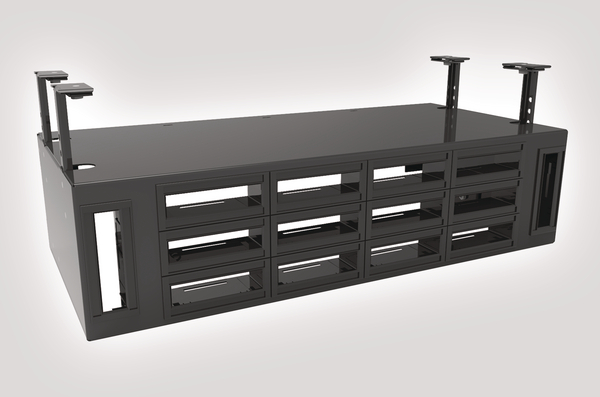

Out of Rack with 3U of RapidNet Connectivity

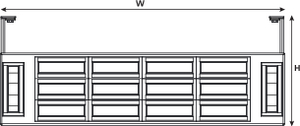

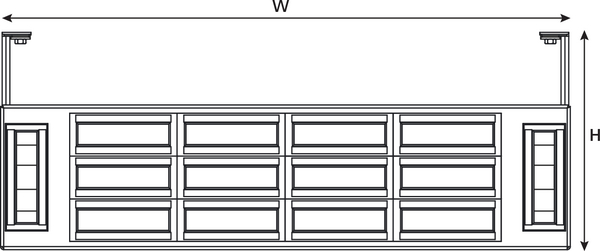

Out of Rack with 3U of RapidNet (front view)

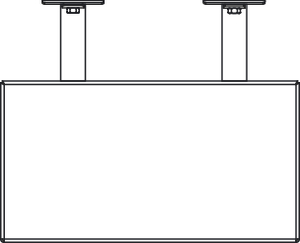

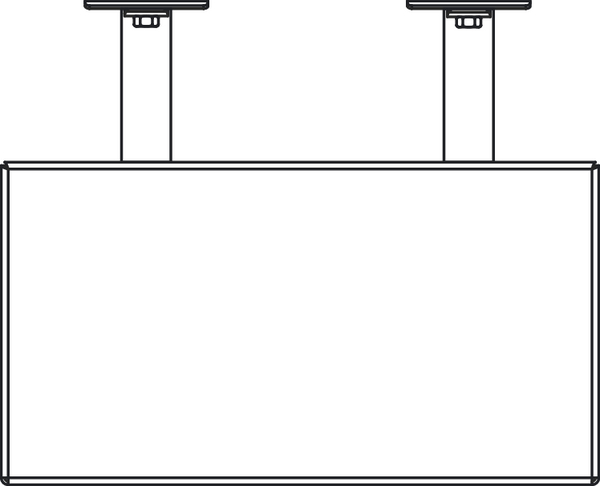

Out of Rack (side view)

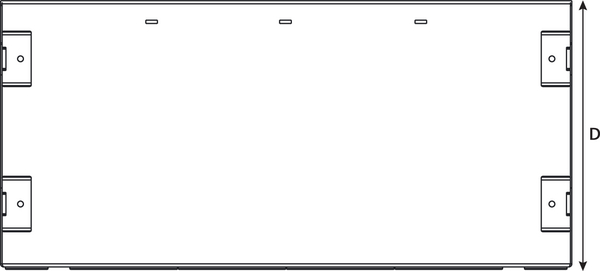

Out of Rack (top view)

    • 3U RapidNet Ready Cassette Space
    • 2 Zero U Cassette Locations
    • Maximum capacity 84 Copper Ports or 2016 Fibres
    • 600mm width for the narrowest server rack
    • Fits any 50mm pitch basket tray
    • Vertical cable management into the rack or cabinet
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Description This Out of Rack configuration provides 3½U of space which will accommodate 6 port UTP copper and fibre RapidNet cassettes providing a maximum capacity of 84 copper ports or 2016 fibres (when using RapidNet MTP VHD) or a combination of both.
    Out of Rack accessories are available on request and include gland/conduit kits, basket trays and mini patch leads.
    Local order number RNAORC1
    PART DESCRIPTION RNAORC1
    Product Family Out Of Rack - 3U RapidNet
    Product Group Cable Management Accessories
    Short Description Out Of Rack - 3U RapidNet
    Technical Description This Out of Rack is manufactured from black powder coated mild steel and is designed to house the majority of network patching and connectivity above the rack or cabinet.
    Type RNAORC1
    Depth (D) 278mm
    Height (H) 225mm
    Width (W) 590mm
    Country of Origin GB
    Dimensions W x H x D 590 mm x 225 mm x 278 mm
    GTIN-13 / EAN 5022660106095
    ETIM 7.0 Key EC000022
    ETIM 8.0 Key EC000022
    ETIM 9.0 Key EC000022
