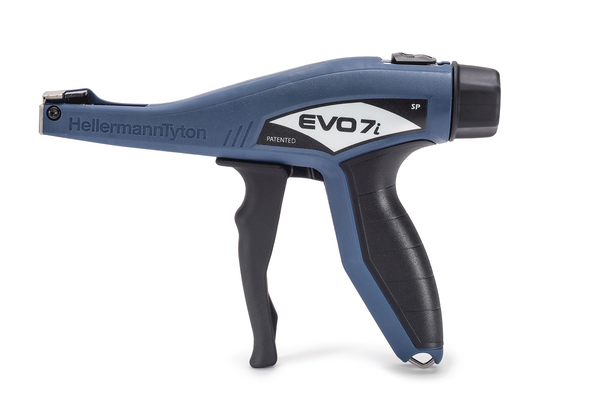

Cable tie tool for 2.5 - 4.8mm, manual, 0.279kg, blue
Art.-No. 110-77002 | EVO7iSP-MET/PL-BU Details

  • Ergonomic, slip-proof handle for a comfortable and secure grip
  • Extremely low-maintenance
  • Fast and precise application with minimum effort (TLC mechanism)
  • Convenient and simple tension adjustment
  • Extended, slim nose for use in narrow spaces
  • Housing made of resilient and lightweight glass fibre-reinforced polyester
  • Standard grip span (90 mm) and short grip span (80 mm) polyester
Show more

Request your individual offer now

Application HellermannTyton's EVO 7i industrial-grade, mechanical hand tool is ergonomically designed to reduce the risks of repetitive stress injuries to operators while simultaneously increasing productivity. The EVO 7i’s Tension/Lock/Cut technology delivers performance, safety and comfort for operators. Calibrated tensioning assures consistent wire bundle tension before flush cut-off. Available in a standard grip span (EVO 7i) or short grip span (EVO 7iSP) for smaller hands. Additional accessories are available.
Colour Blue (BU)
Description EVO7iSP
For Cable Tie Width 0.10 - 0.19"
For Cable Tie Width 2.5 - 4.8mm
For Ties T18, T30, T40, T50, T80, IT18, IT50
Local order number 110-77002
Material Metal (MET), Plastic (PL)
Operation manual
PART DESCRIPTION EVO7iSP-MET/PL-BU
Pack Cont. 1pc.
Package Content packed in Box
Product Family EVO7iSP up to 4.8 mm strap width
Product Group Manual tensioning tool plastic housing
Strap Thickness max. 1.5mm
Tool property Manual clipping
Tool suitable cable tie material Plastic
Type EVO7iSP
Length (L) 192mm
Strap Width max. 4.8mm
Tension Setting Adjustable
Weight/Unit 0.279kg
Width (W) 33mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
Country of Origin CN
Customs Number 82055980
GTIN-13 / EAN 4031026621784
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.235m
Packaging 1 - Qty 1
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00239
Packaging 1 - Weight (kg) 0.779kg
Packaging 1 - Width (m) 0.185m
ETIM 7.0 Key EC000453
ETIM 8.0 Key EC000453
ETIM 9.0 Key EC000453
UNSPSC Key 27112410
