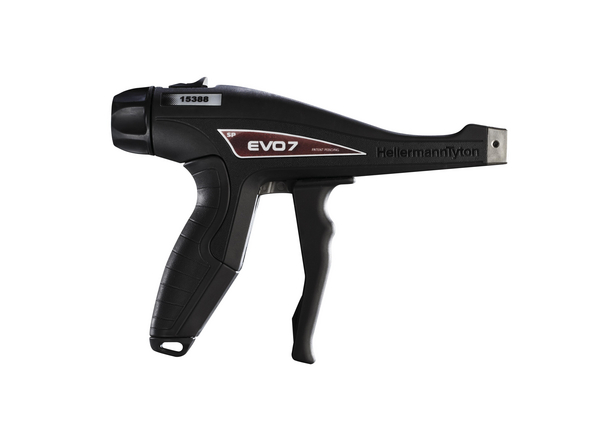

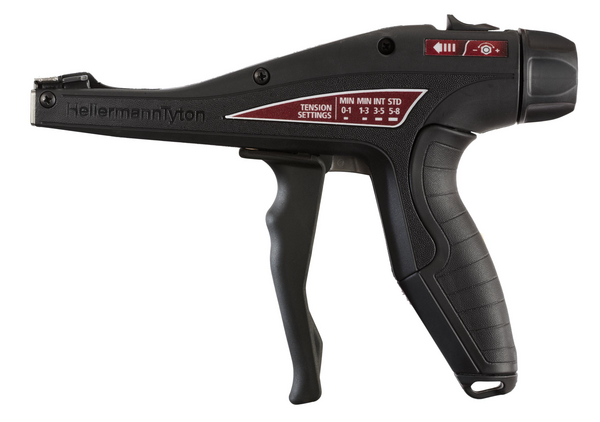

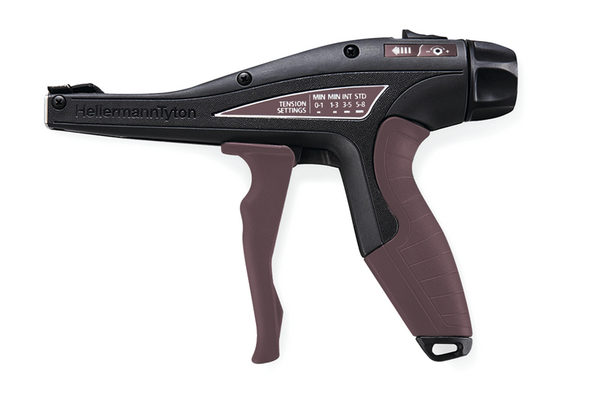

Manual Tensioning Tool Plastic Housing EVO7SP

EVO7SP up to 4.8 mm strap width, Article number: 110-70130

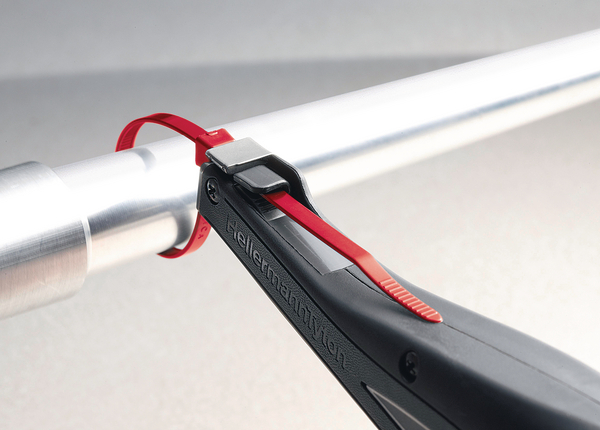

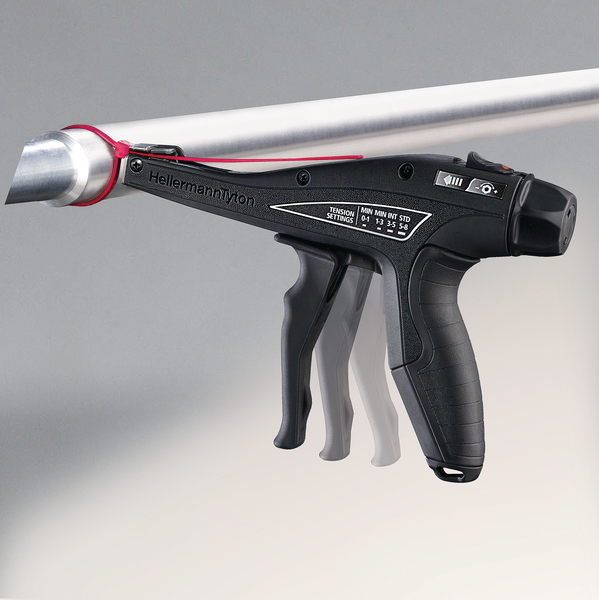

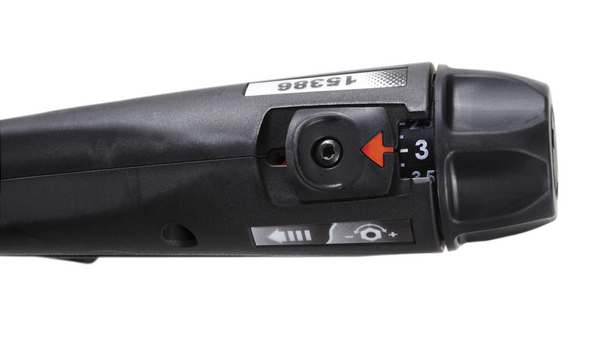

1. Tension: The cable tie is tensioned as usual. Use the tension adjustment knob to select your desired tension setting.

1. Tension: Tie is tensioned as usual. 2. Lock: When the desired tension is met the locking mechanism locks the tie in place.

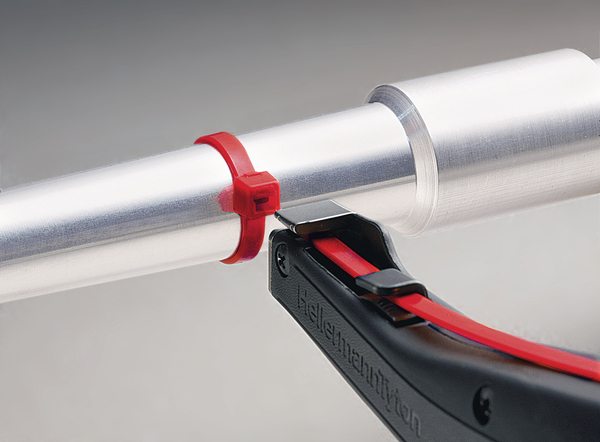

3. Cut: Innovative, effortless and less recoil shock cut-off function.

Features

Ergonomic, slip-proof handle for a comfortable and secure grip
Extremely low-maintenance
Fast and precise application with minimum effort (TLC mechanism)
Convenient and simple tension adjustment
Extended, slim nose for use in narrow spaces
Housing made of resilient and lightweight glass fibre-reinforced polyester
Standard grip span (90 mm) and short grip span (80 mm) available

Certifications & Approvals

Application

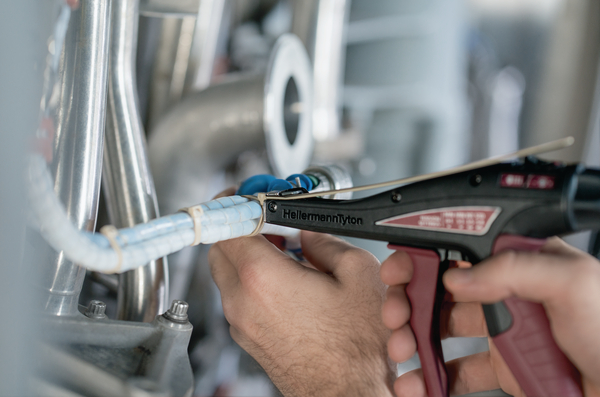

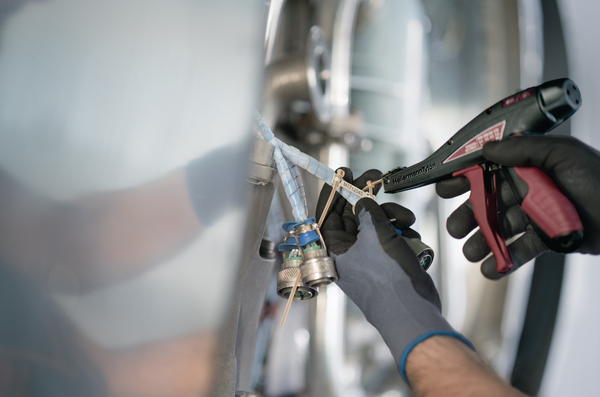

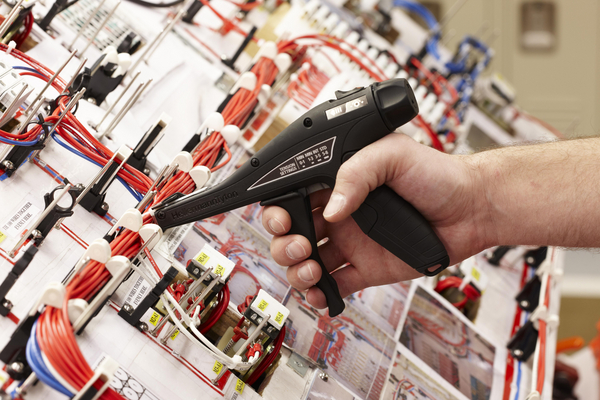

HellermannTyton's EVO7 mechanical hand tool was ergonomically designed to reduce the risks of repetitive stress injuries to operators while concurrently increasing productivity. The EVO7 Tension/Lock/Cut Technology delivers performance, safety and comfort for the operators. Available in a standard grip span (EVO7) or short grip span (EVO7SP), for smaller hands. Additional accessories are available

EVO7SP up to 4.8 mm strap width is suitable for following markets and industries

Chemical Industry
Defence Industry
Electrical Installation
Electronics Industry
Food Industry
Offshore Industry
Rail Transportation Sector
Shipbuilding
Solar Energy Sector
Telecommunication
Wind Energy Sector
Automotive Industry
Aerospace Industry

More products in this product group

Manual Tensioning Tool Plastic Housing >

Base Data

Colour	Black (BK)
Description	EVO7SP
Description Short (BMEcat) (max. 150 characters)	Manual Tensioning Tool up to 4.8 mm strap width
Features and Benefits	The new EVO family protects muscles and joints and increases effectiveness • Less recoil shock reduces impact to operator hand • Application of force is significantly reduced
For Cable Tie Width	1.8 - 5.0mm
GLOBAL PART DESCRIPTION	EVO7SP-MET/PL-BK
Operation	manually
Pack Cont.	1pc.
Product Family	EVO7SP up to 4.8 mm strap width
Product Group	Manual Tensioning Tool Plastic Housing
Short Description	EVO 7SP Mechanical Hand Tool, Short hand span 3.1", EU, 1/pkg
Strap Thickness max.	1.5mm
Tension Setting Tools	Adjustable
Tool property	Manual clipping
Tool suitable cable tie material	Plastic
Type	EVO7SP

Product Dimensions

Strap Width max.	4.8mm
Strap Width max. (G) (imperial)	0.19"

Material and Specifications

ELV compliant Dir. Art. 4 (2)	YES
Hazardous good	No
Material	Metal (MET), Plastic (PL)
Specifications
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No

Logistics and Packaging

EAN / GTIN	4031026454108
Packaging 1 - Height (m)	0.055m
Packaging 1 - Length (m)	0.235m
Packaging 1 - Qty	1
Packaging 1 - Type	Carton
Packaging 1 - Volume (m³)	0.00239m³
Packaging 1 - Weight (kg)	0.635kg
Packaging 1 - Width (m)	0.185m
Packaging 3 - Height (m)	0.27m
Packaging 3 - Length (m)	0.6m
Packaging 3 - Qty	12
Packaging 3 - Type	Carton
Packaging 3 - Volume (m³)	0.0648m³
Packaging 3 - Weight (kg)	10.92kg
Packaging 3 - Width (m)	0.4m
Weight	0.272kg
