Cable tie tool for 4.6-13.5mm, manual, 0.357kg, red/black
Art.-No. 110-80002 | EVO9-MET/PL-BK/RD Details

  • Standard grip span (90 mm) and short grip span (80 mm) available
  • Ergonomic, slip-proof handle for a comfortable and secure grip
  • Extremely low-maintenance
  • Fast and precise application with minimum effort (TLC-technology)
  • Convenient and simple tension adjustment
  • Integrated 3 position quick adjustment override (EVO9/EVO9SP/EVO9HT)
  • Housing made of resilient and lightweight glass fibre-reinforced polyester
Show more

Request your individual offer now

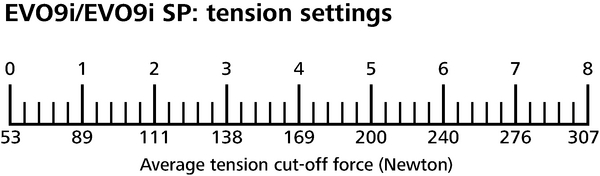

Application The EVO9 is available in a standard grip span 90 mm (EVO9) or short grip span 80 mm (EVO9SP), for smaller hands. Both tools perform between 53 N and 307 N. The EVO9HT (high tension) was designed to apply HellermannTyton cable ties from 120 N until 516 N with a maximum width of 13.5 mm.
Colour Red (RD), Black (BK)
Description EVO9
For Cable Tie Width 4.6-13.5mm
For Ties T50, T80, T120, T150, T250, T255, WS, LK2, LK3, LK5, GL, ECO Series
Material Metal (MET), Plastic (PL)
Operation manual
PART DESCRIPTION EVO9-MET/PL-BK/RD
Pack Cont. 1pc.
Package Content packed in Carton
Product Family EVO9 up to 13.5 mm strap width
Product Group Manual tensioning tool plastic housing
Short Description Manual Tensioning Tool for Cable Ties up to 13.5 mm strap width
Strap Thickness max. 2.0mm
Technical Description Standard Hand Span 90 mm
Tool property Manual clipping
Tool suitable cable tie material Plastic
Type EVO9
Height (H) 135mm
Length (L) 191mm
Strap Width max. 13.5mm
Strap Width max. (G) (imperial) 0.5"
Weight/Unit 0.357kg
Width (W) 33mm
CE Certification No
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Nato number 5120-12-406-3392
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
Country of Origin US
Customs Number 82055980
GTIN-13 / EAN 4031026511306
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.235m
Packaging 1 - Qty 1
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00239
Packaging 1 - Weight (kg) 0.597kg
Packaging 1 - Width (m) 0.185m
ETIM 7.0 Key EC000453
ETIM 8.0 Key EC000453
ETIM 9.0 Key EC000453
UNSPSC Key 27112410
