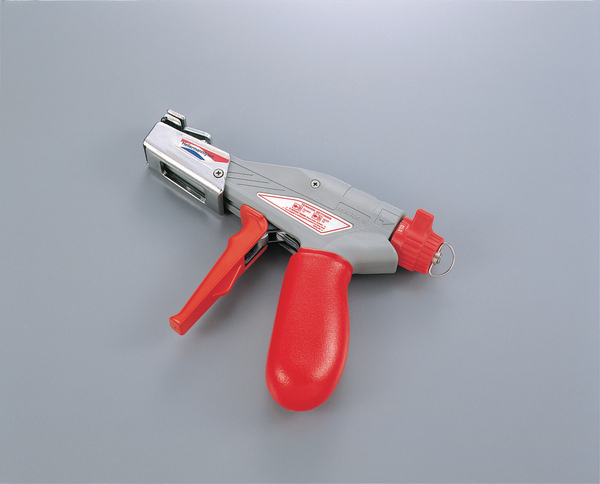

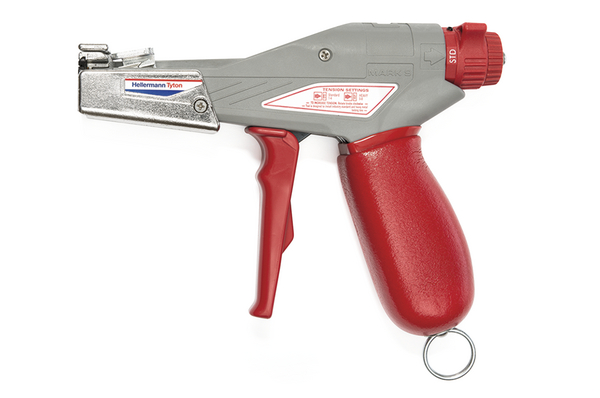

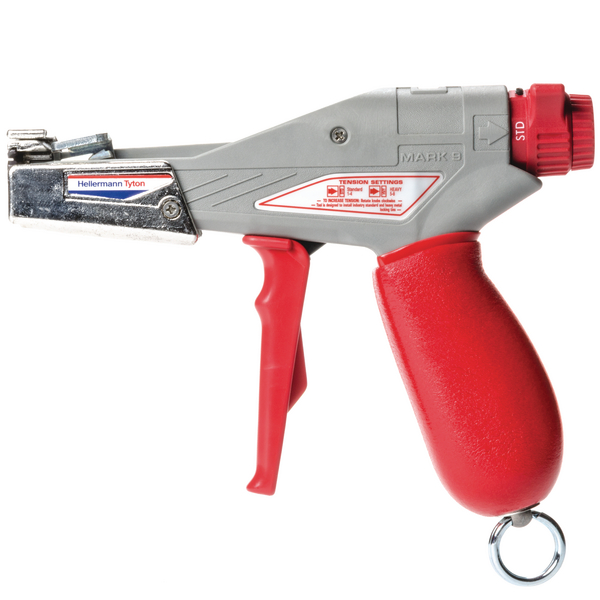

Cable tie tool for 4.5 - 16.0mm, manual, 0.514kg, grey
Art.-No. 110-95000 | MK9SST-PA66GF30-GY Details

  • Glass-fibre-reinforced housing
  • Ergonomic design
  • Consistent tensioning and automatically cutting of metal ties MBT/MAT-series
  • Infinitely adjustable tension force combined with two-step quick adjustment

Request your individual offer now

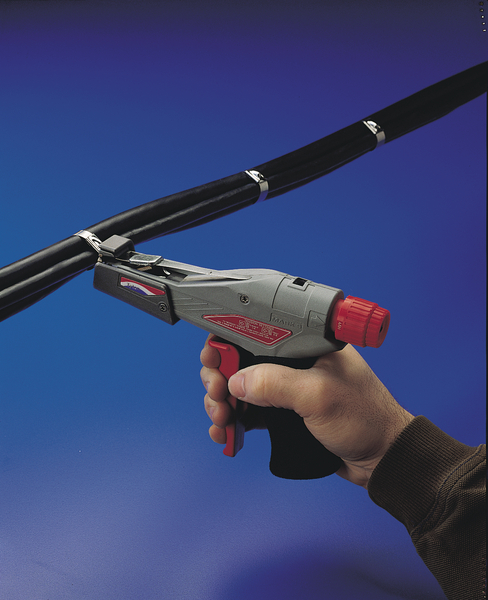

Application The MK9SST is constructed with heavy duty parts to ensure optimum performance. It is designed to apply our MBT cable ties with a strap width of up to 16 mm. The tool is ideally suited for use in most arduous environments such as found on board ships, oil rigs, constructions or in nuclear power stations.
Colour Grey (GY)
Description MK9SST
For Cable Tie Width 0.18 - 0.63"
For Cable Tie Width 4.5 - 16.0mm
For Ties MBT-Series
Local order number MK9SST.9A
Material Polyamide 6.6, glass-fibre reinforced (PA66GF30)
Operation manual
PART DESCRIPTION MK9SST-PA66GF30-GY
Pack Cont. 1pc.
Package Content packed in Carton
Product Family MK9SST up to 16.0 mm strap width
Product Group Manual tensioning tool for metal ties MBT-Series
Short Description Manual Tensioning Tool for Metal Ties up to 16.0 mm strap width
Strap Thickness max. 0.48mm
Strap Thickness max. 0.02"
Tool property Manual clipping
Tool suitable cable tie material Stainless steel
Type MK9SST
Strap Width max. 16.0mm
Strap Width max. (G) (imperial) 0.6"
Tension Setting Adjustable
Weight/Unit 0.514kg
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Nato number 5120-12-362-1115
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin US
Customs Number 82055980
GTIN-13 / EAN 4031026103747
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.265m
Packaging 1 - Qty 1
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00313
Packaging 1 - Weight (kg) 0.829kg
Packaging 1 - Width (m) 0.215m
ETIM 7.0 Key EC000453
ETIM 8.0 Key EC000453
ETIM 9.0 Key EC000453
UNSPSC Key 27112410
