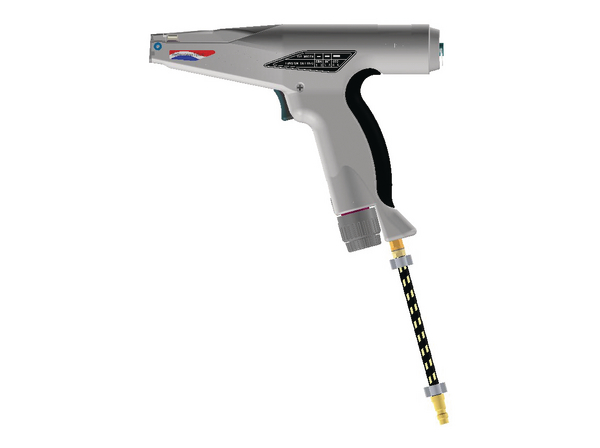

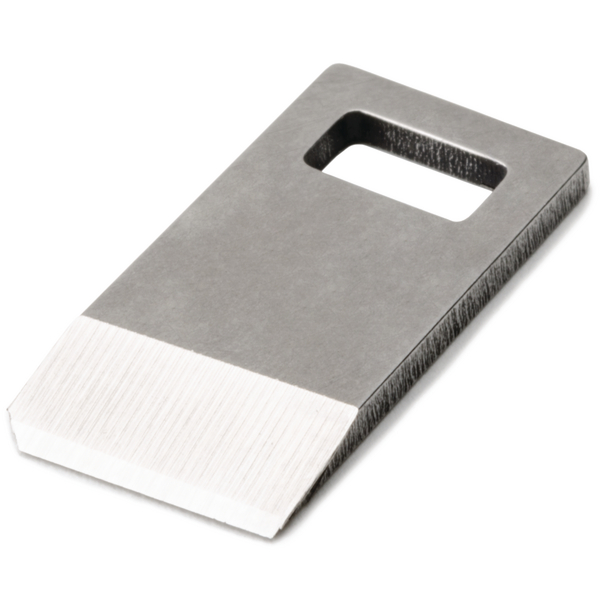

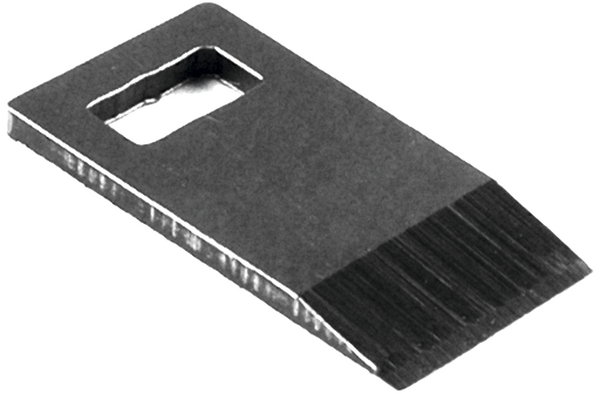

Pneumatic Tensioning Tool with Plastic Housing : SP MK7P replacement blade
Pneumatic tensioning tool up to 4.8 mm strap widthArticle number: 110-07111
Features
- Enhanced technology for better application of cable ties
- Improved compressed air supply for faster tensioning piston movement
- Shorter processing time and greater volume of connecting tie application
- Genuine potential for rationalisation
- Ergonomic design, moulded handle to prevent slippage, reduce operator fatigue
- Lightweight but very tough housing made of glass fibre-reinforced plastic
- Meets high industry standards
- Tensionioning and cutting off cable ties flush with head by pressing one button
- Smooth cut edge to prevent injuries
- Automatic ejection of cut-off cable tie end

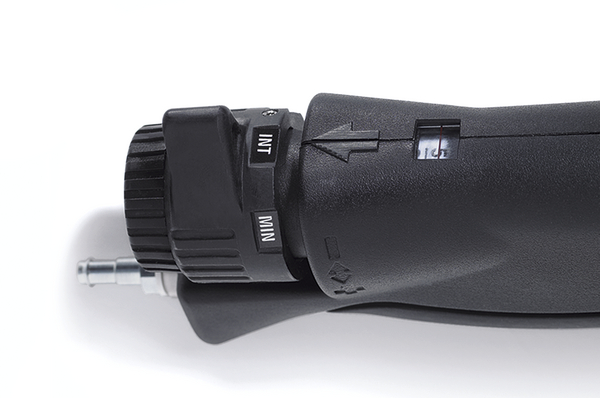

- Three-level preset control to set tool tension
- Optional safety cap to prevent tension setting from being changed by accident
- (Important when bundling sensitive materials and maintaining process reliability)
- Non-slip, comfortable grip, soft touch trigger, and one-touch tensioning/cut off
- Very lightweight and easy to use on all cable ties 2.5 - 4.8 mm wide
Certifications & Approvals
Application
The MK7P pneumatic bundling tool sets a new benchmark for the rational application of ties in the industrial production process. Improved compressed air supply moves the tensioning piston faster than in comparable tools.
More products in this product group
Pneumatic Tensioning Tool with Plastic Housing >| Air Pressure (min.) | 3Bar |
| Air Pressure PSI | 90 |
| Colour | Black (BK) |
| Description | Replacement Blade |
| for Air Pressure min - max | 3 - 6 Bar |
| Operation | pneumatic |
| Pack Cont. | 1pc. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | SP MK7P replacement blade-ST-BK |
| Product Family | MK7P up to 4.8 mm strap width |
| Product Group | Pneumatic Tensioning Tool with Plastic Housing |
| Short Description | Pneumatic tensioning tool up to 4.8 mm strap width |
| Tension Setting Tools | Adjustable |
| Tool property | Automatic cut off |
| Tool suitable cable tie material | Plastic |
| Type | Replacement Blade |
| Air Pressure (max.) | 6Bar |
| Air Supply | Non oiled / oiled |
| Hose Internal Diameter | 4.0mm |
| L x H x W | approx. 220 x 170 x 40 mm |
| Tension Force | 60 to 170 N, adjustable |
| CE Certification | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Material | Steel (ST) |
| Prop65 Warning | No |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| EAN / GTIN | 4031026219981 |
| Packaging 1 - Height (m) | 0.002m |
| Packaging 1 - Length (m) | 0.115m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00002m³ |
| Packaging 1 - Weight (kg) | 0.006kg |
| Packaging 1 - Width (m) | 0.07m |
| Weight | 0.001kg |
| ETIM 6.0 | EC000453 |
| ETIM 7.0 Key | EC000453 |
| UNSPSC Key | 39121703 |
