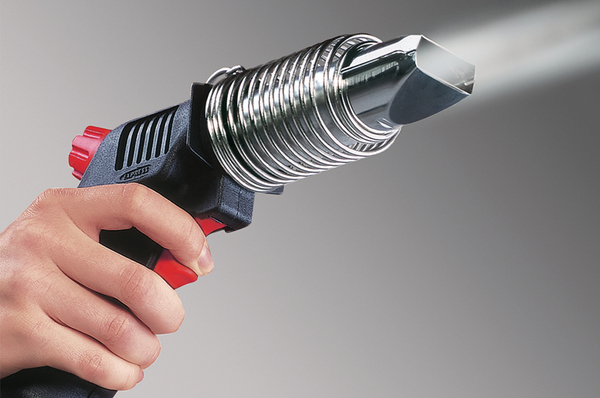

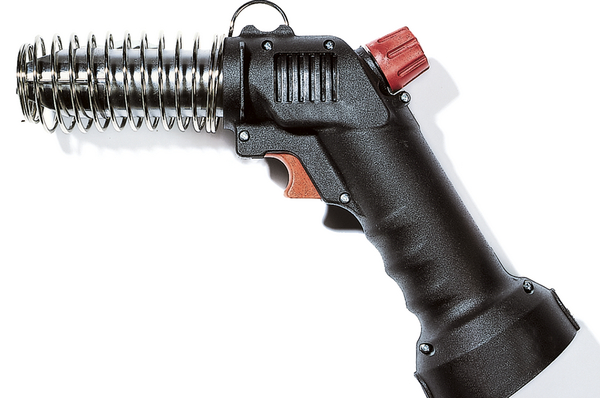

Gas powered Hot Air Tool : E4500

Gas Powered Hot Air Gun, Article number: 391-90002

Features

  • Cordless hot air gun works with special gas cartridge
  • Does not need any power supply
  • Suitable for outdoor use
  • Designed specifically for heat shrink tubing, end caps and moulded shapes
  • Supplied with protective spring, two nozzles and a gas cartridge
  • Allows precise working in any position even in restricted spaces
  • Can be operated on its stand for hands free use
  • Light weight tool
  • Operating time of cartridige: approx. 1.5 hours
  • With easy Piezo ignition

Certifications & Approvals

Application

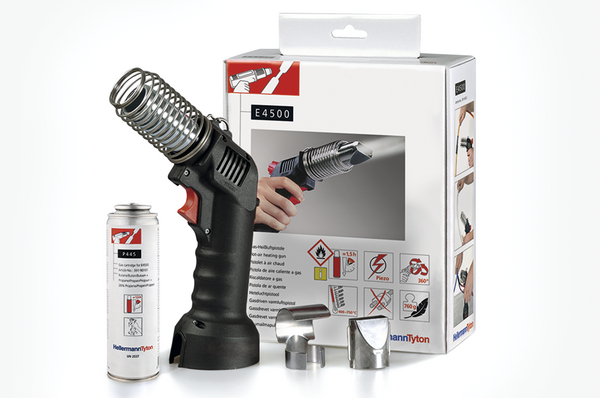

The E4500 hot-air gun Starter Kit is ideal for working in cramped spaces or where there is no power supply. The Kit includes a E4500 Hot Air Tool with protective spring, gas cartridge P445, Reflector Nozzle Z2 and Flat Nozzle Z3. The Hot Air Tool is suitable for shrinking all types of heat shrink products including tubing, shapes and cable repair sleeves. It can also be used for the bending and shaping of PVC pipes, soft soldering of copper pipes, drying, defrosting (of locks) , heating and paint stripping.

E4500 is suitable for following markets and industries

Air flow control Continuously variable
Colour Black (BK)
Description Hot air gun with protective spring incl. gas cartridge, reflector nozzle Z2 and flat nozzle Z3
Package Quantity per pcs.
PART DESCRIPTION E4500-BK
Product Family E4500
Product Group Gas powered Hot Air Tool
Short Description Gas Powered Hot Air Gun
Type GAS-HEATGUN4500
With temperature control Yes
With temperature indication No
ELV compliant Dir. Art. 4 (2) YES
Hazardous good Yes
Operating Temperature - °C +400 °C to +700 °C
Specifications
EAN / GTIN 4031026239484
Packaging 1 - Height (m) 0.085m
Packaging 1 - Length (m) 0.225m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00597
Packaging 1 - Weight (kg) 1.1kg
Packaging 1 - Width (m) 0.312m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.45m
Packaging 3 - Qty 5
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0338
Packaging 3 - Weight (kg) 6.0kg
Packaging 3 - Width (m) 0.3m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 165.0kg
Packaging 4 - Width (m) 0.8m
Weight 1.1kg
ETIM 6.0 EC002967
ETIM 7.0 Key EC002967
