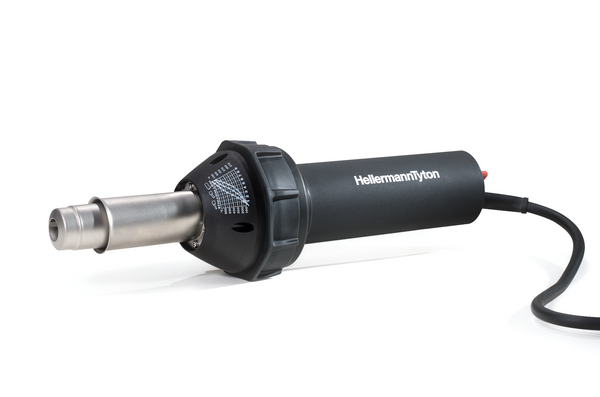

Electrical Hot Air Tool : H6100
Electrical Hot Air Tool 1600W /230V /max. +700°C, Article number: 391-00110
Features
- Ergonomic and light weight hand tool
- Fatigue-free working due to low weight less than 1 kg
- Powerful 1600W motor
- Non-slip rubber ring for safe work bench application
- Infinitely variable temperature setting up to +700°C
- Ceramic heating element

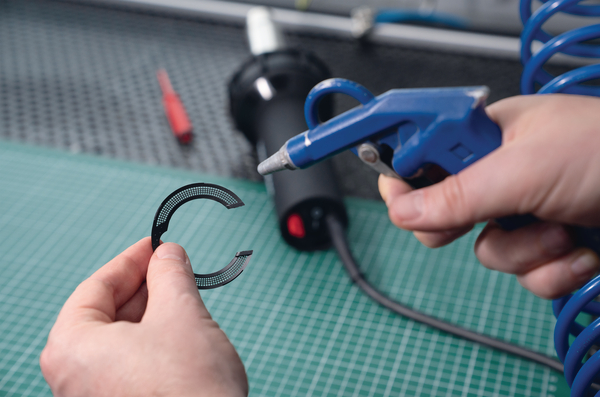

- Integrated easy to clean air filter
- Heavy duty H07RN-F power cord

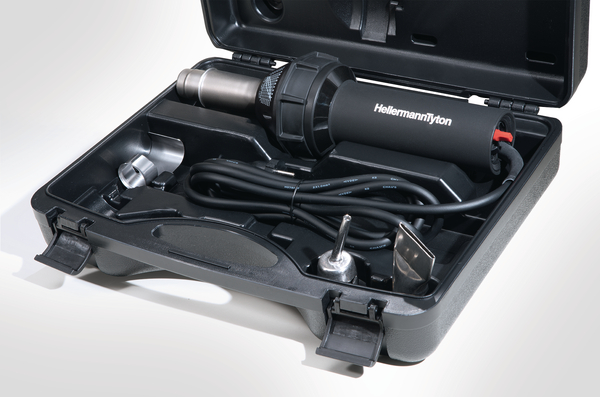

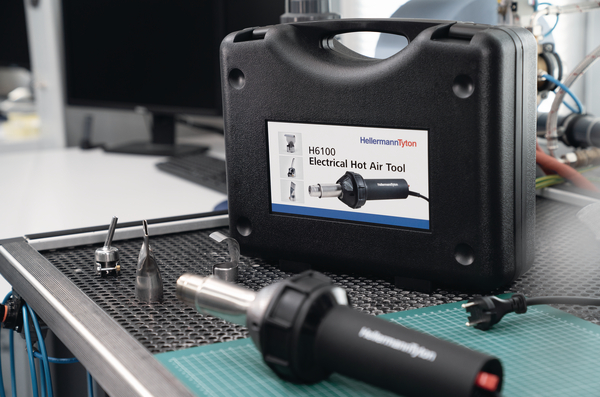

- Sturdy tool case incl. 3 push-on nozzles for precise heat shrink applications
Certifications & Approvals
Application

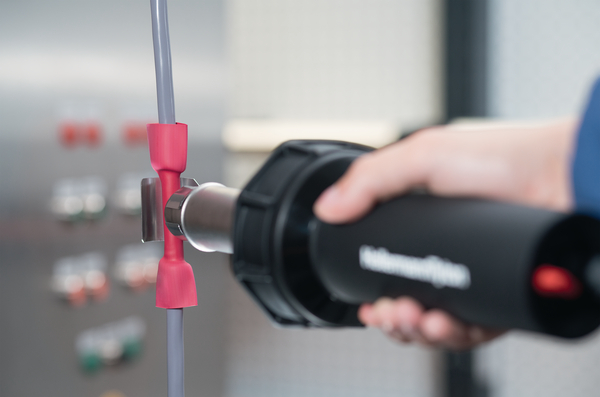

H6100 Electrical Hot Air Tool is designed for shrinking thin to medium wall heat shrink tubing, end caps and molded shapes.
HellermannTyton H6100 is suitable for following markets and industries
-
Aerospace Industry
-
Automotive Industry
-
Defence Industry
-
Electrical Installation
-
Electronics Industry
-
OEM Industry
-
Panel Building
-
Rail Transportation Sector
-
Solar Energy Sector
-
Wind Energy Sector
-
Wire Processing
More products in this product group
Electrical Hot Air Tool >| Air flow control | Continuously variable |
| Colour | Black (BK) |
| Description | HellermannTyton H6100 Hot Air Tool |
| Pack Cont. | 1pcs. |
| Package Quantity per | Box |
| PART DESCRIPTION | H6100-BK |
| Power Supply unit | 230 V |
| Product Family | HellermannTyton H6100 |
| Product Group | Electrical Hot Air Tool |
| Short Description | Electrical Hot Air Tool 1600W /230V /max. +700°C |
| Wattage | 1600W |
| With temperature control | Yes |
| With temperature indication | No |
| Frequency | 50/60 Hz |
| Height (H) | 101mm |
| Length (L) | 346mm |
| Operational Voltage | 230 V |
| Power Supply | 230 V |
| Standby Temp.°C | 40°C |
| Width (W) | 101mm |
| Air Flow l/min | 240l/min |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Operating Temperature - °C | +40 °C to +700 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026621319 |
| Packaging 1 - Height (m) | 0.12m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.01488m³ |
| Packaging 1 - Weight (kg) | 2.96kg |
| Packaging 1 - Width (m) | 0.31m |
| Packaging 3 - Height (m) | 0.34m |
| Packaging 3 - Length (m) | 0.63m |
| Packaging 3 - Qty | 5 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.09m³ |
| Packaging 3 - Weight (kg) | 15.3kg |
| Packaging 3 - Width (m) | 0.42m |
| Packaging 4 - Height (m) | 1.165m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.118m³ |
| Packaging 4 - Weight (kg) | 112.8kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 2.96kg |
