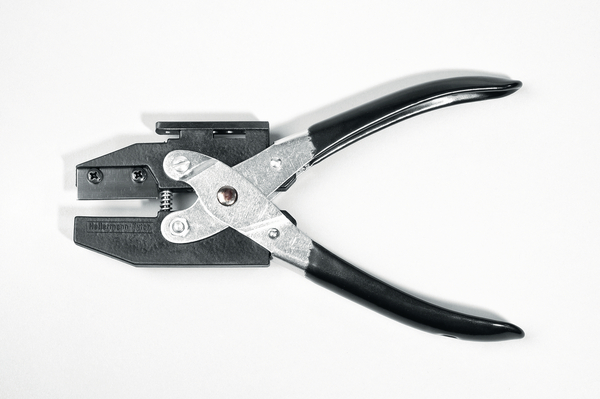

Helafix Tool : HCT2
Application tooling for identification carrier tubingsArticle number: 525-00013
Features
- Cleanly cut Helafix HCR carrier tubing
- Punch securing holes on edges of HCR09 (HCT1) and HCR12 (HCT2)
- Apply punched HCR09 and HCR12 with T18 range of cable ties
- Suitable for punching rivet holes in HCR06, HCR18 and HCR24 tubing
- Punch hole diameter 2.5 mm
- Fix with T18 range of cable ties or suitable rivets
Certifications & Approvals
Application

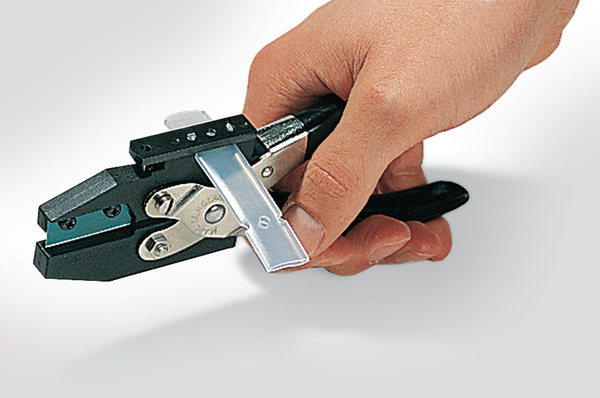

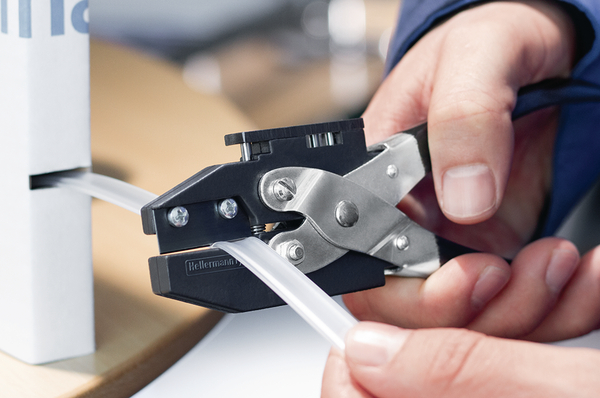

HCT1 and HCT2 tools are ideal for cleanly cutting the carrier strip as well as punching out the securing holes. For HCR06, HCR18 and HCR24, the front part of the pliers can be used. To fix the character holders HC and HCR simply use the T18 range of cable ties, fixings or rivets.
More products in this product group
Helafix Tool >| Colour | Natural (NA), Black (BK) |
| Fixation Method | Others |
| For Size | HCR12 |
| Pack Cont. | 1pc. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | HCT2-ST-BK/NA |
| Product Family | HCT2 for carrier size HCR12 |
| Product Group | Helafix Tool |
| Short Description | Application tooling for identification carrier tubings |
| Variant | Other |
| With label space | No |
| Diameter (D) | 2.5mm |
| For Carrier Width | 13.00mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Material | Steel (ST) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026165295 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.2m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00072m³ |
| Packaging 1 - Weight (kg) | 0.193kg |
| Packaging 1 - Width (m) | 0.12m |
| Weight | 0.193kg |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 Key | EC001530 |
