09/08/2025

Accessory, Autotool, metal, 1pc. (Bench_mount_kit_horizontal_ATS)
Art.-No. 102-00041 | Bench_mount_kit_horizontal_ATS-AL-ML |

Copied

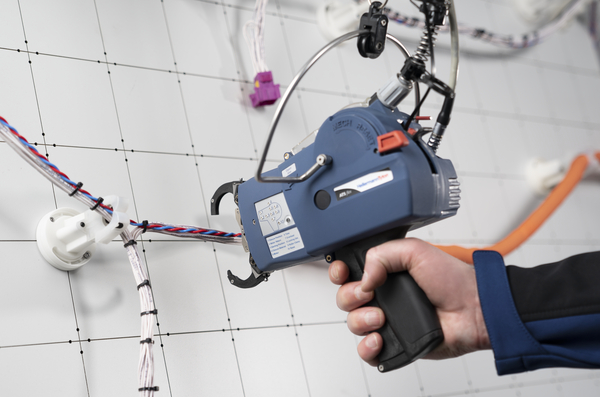

Autotool ATS flex on the harness board (also shown: Overhead suspension ATS).

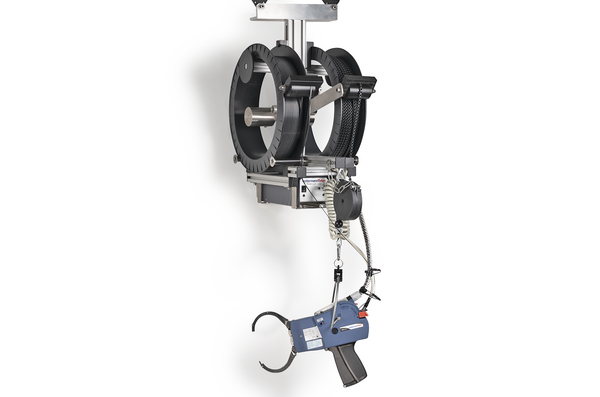

Overhead suspension ATS (also shown: Autotool System ATS flex and consumables).

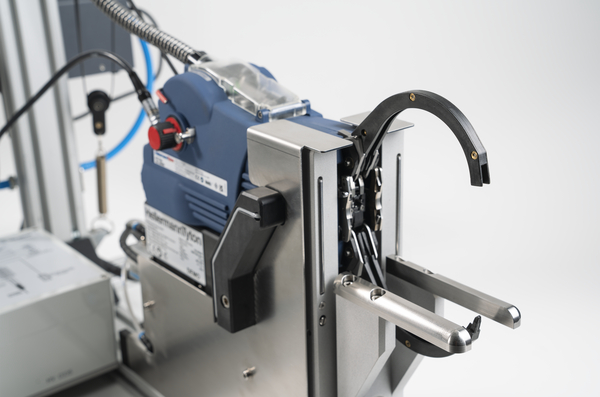

Optional: Bench mount kit ATS (also shown: Autotool System ATS flex)
Optional: Modification kit 100 mm jaws.
Automized clip application.
Automized clip application
Optional: Bench mount kit 3080 with table board.

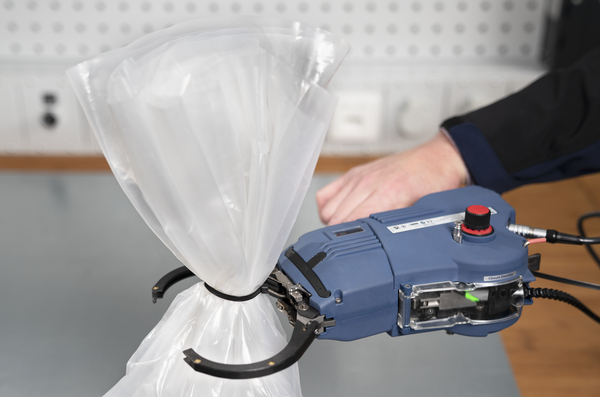

Packaging application with Bench mount kit horizontal 3080.

    • Bench mount kit horizontal ATS only for horizontal integration into fully automated production lines
    • Additionally compressed air supply (6 bar) needed
    • Feed of material via material reels
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Method Stationary or flexible
    Bench mount kit Tool and tie reel retainer including foot pedal
    Colour Metal (ML)
    Description Bench mount kit horizontal ATS
    Harness board accessory HH20 Raises the bundle off the harness board at optimum height and allows the operator to eliminate handling the bundle when applying ties.
    Local order number Bench mount kit horizontal
    Material Aluminium (AL)
    Operation electrical
    PART DESCRIPTION Bench_mount_kit_horizontal_ATS-AL-ML
    Package Content 1pc.
    Package Content packed in Carton
    Power Supply unit Input: 240/115 V a.c., 50/60 Hz, Output: 48 V d.c., max. 150 W
    Product Family Bench mount kit horizontal for Autotool System ATS
    Product Group Waste-free bundling up to ⌀ 100 mm
    Short Description Bench mount kit for Autotool System ATS for efficient automatisation
    Tool suitable cable tie material Plastic
    Type Bench_mount_kit_horizontal_ATS
    Weight/Unit 14.0kg
    Bundle ⌀ 0.0-80.0mm
    Bundle ⌀ max. 80.0mm
    Bundle ⌀ min. 0.0mm
    Cable Tie Head Height (metric) 5.4mm
    Cable Tie Head Width (metric) 9.0mm
    Strap Width max. 4.5mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 84798997
    GTIN-13 / EAN 4031026291130
    Packaging 1 - Height (m) 0.89m
    Packaging 1 - Length (m) 1.02m
    Packaging 1 - Qty 1
    Packaging 1 - Type pcs.
    Packaging 1 - Volume (m³) 0.49929m³
    Packaging 1 - Weight (kg) 14.0kg
    Packaging 1 - Width (m) 0.55m
    Packaging 3 - Height (m) 0.89m
    Packaging 3 - Length (m) 1.02m
    Packaging 3 - Qty 1
    Packaging 3 - Type Carton
    Packaging 3 - Volume (m³) 0.4993m³
    Packaging 3 - Weight (kg) 24.3kg
    Packaging 3 - Width (m) 0.55m
    Packaging 4 - Height (m) 10.34m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 1
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 9.926m³
    Packaging 4 - Weight (kg) 45.3kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000453
    ETIM 8.0 Key EC000453
    ETIM 9.0 Key EC000453
    UNSPSC Key 27112410
