Automatic bundling up to Ø 20 mm HH20

Stand Off HH20 , Article number: 120-00080

Features

  • Standoff for uniform, elevated harness height
  • Speeds up harness wire laying
  • Suitable for bundle diameters up to 20 mm

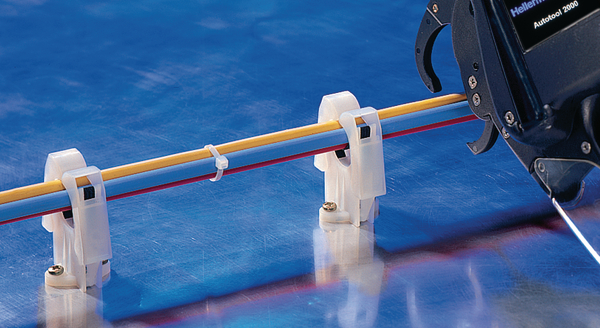

  • Usable with manual piece ties and the Autotool 2000 family

Certifications & Approvals

Application

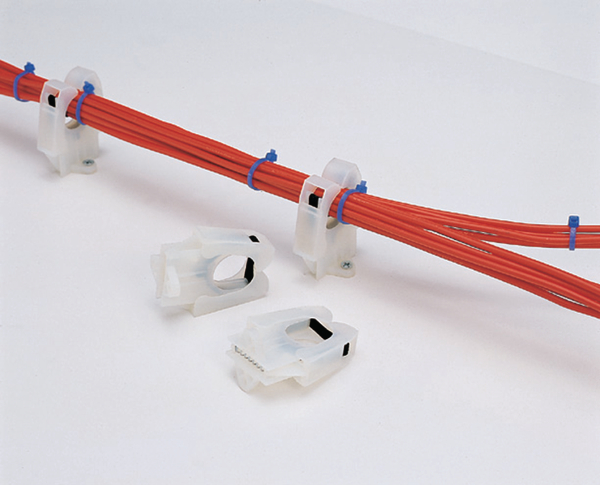

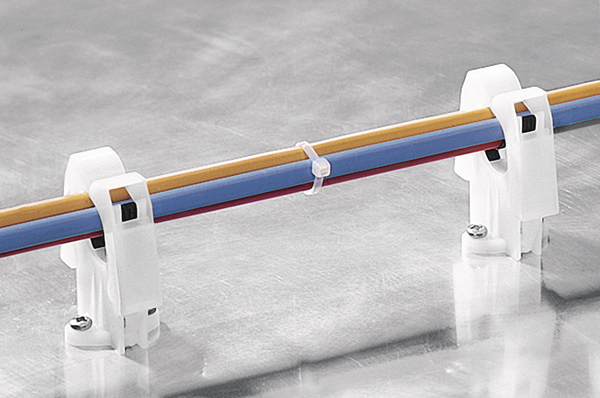

Stand-off HH20 - are used as spacer for an optimal bundling, bundle up to Ø 20 mm, bundle height 25-45 mm

Stand Off HH20 is suitable for following markets and industries

Application 2
Colour Natural (NA)

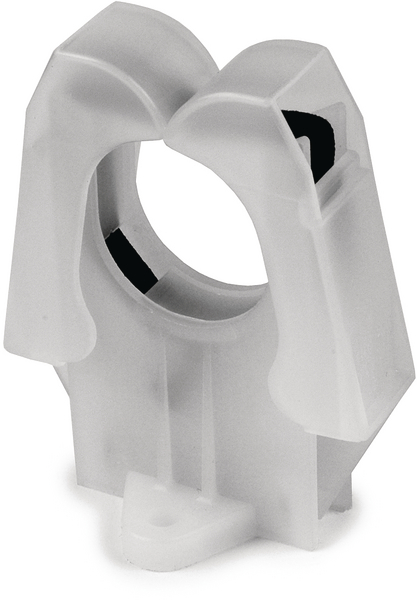

Description HH20 wire retainer
Description Short (BMEcat) (max. 150 characters) Stand Off natural up to 20mm
Features and Benefits Spring loaded prongs for quick release of the finished harness.
GLOBAL PART DESCRIPTION HH20-PA66-NA
Mounting Screw Type M3
Pack Cont. 25
Package Quantity per Bag
Product Family Stand Off HH20
Product Group Automatic bundling up to Ø 20 mm
Short Description Natural colour, nylon accessory for fixing to harness boards. Designed to be secured with two screws (not provided) through the 3.5mm holes.
Tool suitable cable tie material Plastic
Type HH 20
Bundle ∅ max. 20.0mm
for Hole ∅ (FH) 3.9 mm
Height (H) 54mm
Length (L) 100mm
Min.Tensile Strength 80N
Width (W) 31.0mm
Width (W2) 43.3mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Specifications
EAN / GTIN 4031026197074
Minimum Order Quantity 1
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 25
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0012
Packaging 1 - Weight (kg) 0.325kg
Packaging 1 - Width (m) 0.2m
Packaging 3 - Height (m) 0.18m
Packaging 3 - Length (m) 0.45m
Packaging 3 - Qty 250
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0251
Packaging 3 - Weight (kg) 3.46kg
Packaging 3 - Width (m) 0.31m
Packaging 4 - Height (m) 1.224m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 7500
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.175
Packaging 4 - Weight (kg) 124.8kg
Packaging 4 - Width (m) 0.8m
Weight 0.325kg
ETIM 5.0 EC000453
ETIM 6.0 EC000453
UNSPSC Key 39121717
