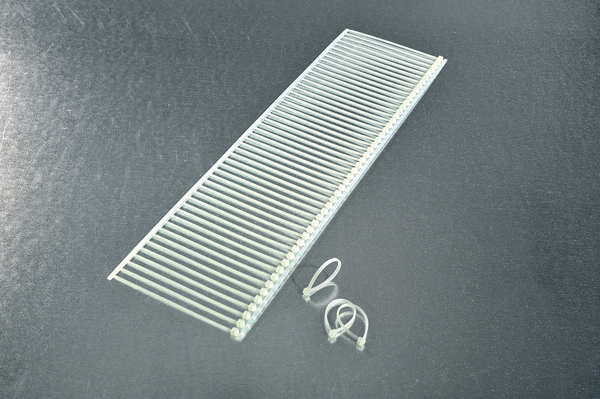

Cable tie for autotools, bandolier, 100x2.5mm, Dmin=0.7mm, Dmax=20.0mm, natural, 500pcs.
Art.-No. 120-04019
| T18RA50-PA66HS-NA
|
Copied
- Heat stabilised cable ties (PA66HS) for temperatures up to +105°C
- Available in bandoleers of 50 cable ties or reels of 3,500 cable ties
- Repetitive tension on the bundles
- Easily recyclable
Request quote
More products in this product group:
| Application | The inside-serrated cable ties are designed for use specifically in the automatic cable tying systems. The Autotool CPK hybrid is ideally suited for handling high volumes applications in wire harness facilities, automotive and industrial companies as wells as the packaging sector. |
| Application Method | The cable ties have to be applied with the electrically operated automatic cable-tying system Autotool CPK hybrid from HellermannTyton. The cycle time is 0.65-1.0 sec. |
| Bench mount kit | Bench mounting kit CPK with foot pedal operation |
| Colour | Natural (NA) |
| Harness board accessory HH20 | Bundle ⌀ max. 20 mm, standoffs are used as spacer for an optimal bundling, bundle height 45-25 mm |
| Local order number | T18RA50 NA HS |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Min.Tensile Strength | 80N |
| Overhead Suspender | Overhead suspension CPK unit with spring balancer |
| PART DESCRIPTION | T18RA50-PA66HS-NA |
| Package Content | 500pcs. |
| Package Content packed in | Reel |
| Power Supply unit |
Power pack CPK Input: 230/115 VAC Output: 25,2 VDC 50 W |
| Product Family | Cable ties for Autotool CPK hybrid |
| Product Group | Automatic bundling up to ⌀ 20 mm |
| Tool suitable cable tie material | Plastic |
| Type | T18RA50 |
| Variant | bandolier |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL File link | Link |
| UL Recognized (US) | Yes |
| UL-File Number | E64962 |
| Country of Origin | JP |
| GTIN-13 / EAN | 4031026284576 |
| Minimum Order Quantity | 1 |
| Packaging 1 - Weight (kg) | 0.35kg |
| Packaging 3 - Height (m) | 0.28m |
| Packaging 3 - Length (m) | 0.45m |
| Packaging 3 - Qty | 20000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0391m³ |
| Packaging 3 - Weight (kg) | 7.50kg |
| Packaging 3 - Width (m) | 0.31m |
| Packaging 4 - Height (m) | 0.98m |
| Packaging 4 - Length (m) | 1.20m |
| Packaging 4 - Qty | 300000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.941m³ |
| Packaging 4 - Weight (kg) | 132.0kg |
| Packaging 4 - Width (m) | 0.80m |
