CFN B Port Anchoring Kit
Art.-No. 857-40923 | AK-CFN-B-PORT-02 |

Copied
CFN B Port Anchoring Kit.
CFN B Port Anchoring Kit.
CFN B Port Anchoring Kit.

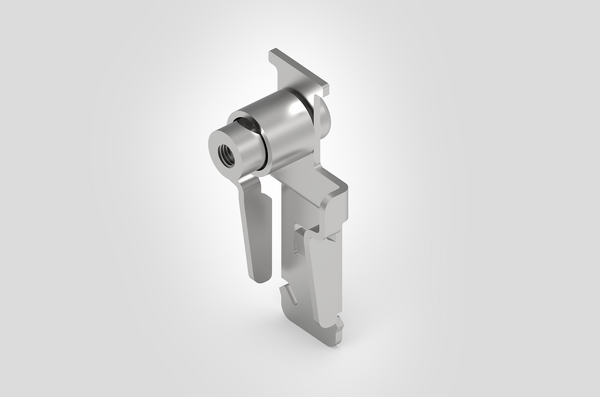

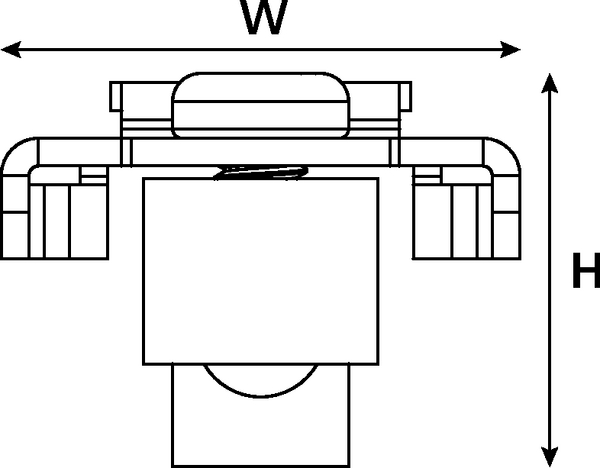

CFN B Port Anchoring Kit (front view)

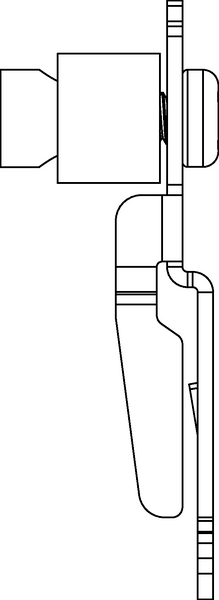

CFN B Port Anchoring Kit (side view)

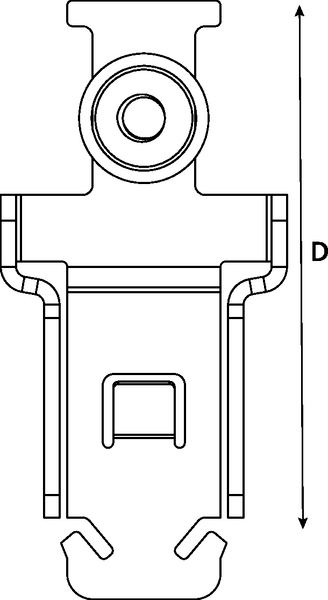

CFN B Port Anchoring Kit (top view)

    • Provides strain relief to fibre optic cables with solid or stranded strength members
    • Simple installation by clamping the strength member to the mounting bracket

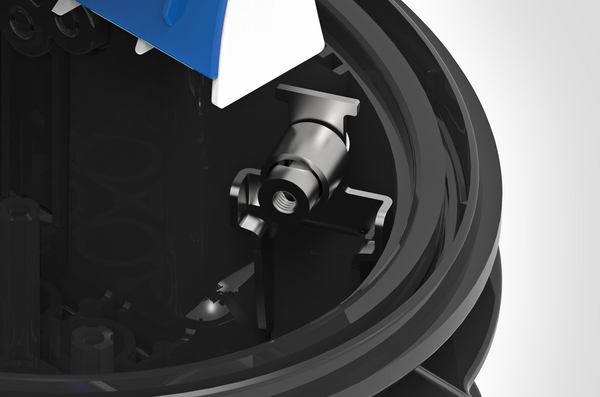

    • Suitable for use with CFNIR Closures
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Metal (ML)

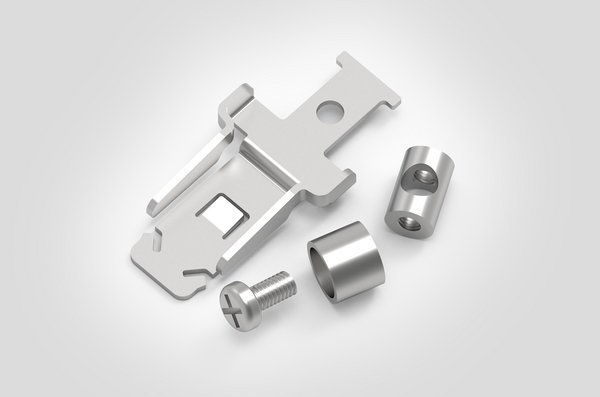

    Content Anchor Bracket (2)
    Anchor (2)
    Description Anchor Kits for CFNIR
    PART DESCRIPTION AK-CFN-B-PORT-02
    Package Content packed in Bag
    Product Family CFNIR B Port Anchor
    Product Group Cable and Strength Member Anchor Kits
    Short Description CFN B Port Anchoring Kit
    Technical Description The B Port anchor kit is used to fix the strength member within the cable to the mounting bracket inside the closure and helps to ensure that no undue stress is put upon the fibre cables which may affect the optical performance.
    Type AK-CFN-B-PORT-02
    Depth (D) 58.5mm
    Height (H) 21mm
    Width (W) 28mm
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 73269098
    GTIN-13 / EAN 5022660187995
    Packaging 1 - Height (m) 0.02m
    Packaging 1 - Qty 2
    Packaging 1 - Type Bag
    Packaging 1 - Weight (kg) 0.1kg
    Packaging 1 - Width (m) 0.02m
    ETIM 7.0 Key EC002267
    ETIM 8.0 Key EC002267
    ETIM 9.0 Key EC002267
