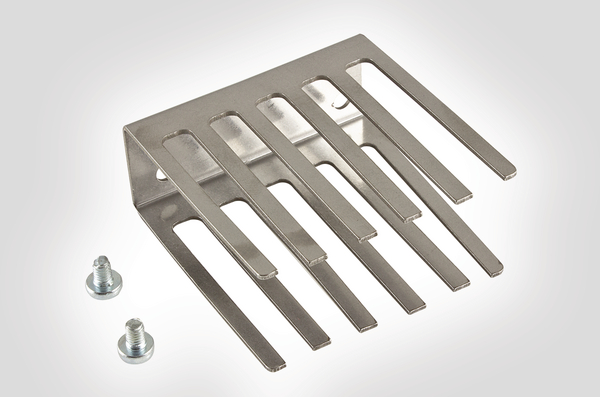

7mm Duct Manager
Art.-No. 857-40326
| ENIR-DM7MM
|
Copied
- 4 fibre management accessories for IR Fibre Enclosures
- Extend cable capacity and storage
- Simple design, easy to install
- Manufactured from zinc passivated mild steel and/or stainless steel
Request your individual offer now
Request quote
More products in this product group:
| Application | The ENIR is available with several fibre splice tray or connectorised options determined by the number of fibres required in the network. Designed as a building entry point for a large or small MDU, the connectorised fibre enclosure from HellermannTyton incorporates two separate compartments for the network operator and the user. |
| Description | Duct Manager |
| PART DESCRIPTION | ENIR-DM7MM |
| Product Family | Fibre Optic Internal Enclosure Accessories |
| Product Group | 7mm Duct Manager |
| Technical Description |
HellermannTyton supply a range of fibre management accessories for use with the IR fibre enclosures. The rear cable basket manager is a mounting bracket designed for use with the single compartment IR enclosure. The bracket is manufactured from zinc passivated mild steel and has been designed to provide additional cable storage space in addition to allowing the enclosure to be quickly and easily mounted or dismounted from the street cabinet or wall. The cable bridge clamp and fittings are manufactured from zinc passivated mild steel and stainless steel providing an effective method of extending the capacity of the IR enclosures. The design allows the cable capacity of the IR enclosure to be extended from 2 cables to 4 cables (single compartment enclosure) and 4 cables to 8 cables (double compartment enclosure) with each cable having a maximum diameter of 20mm. The foam fibre manager is manufactured from zinc passivated mild steel and has been designed to be used in conjunction with the duct managers. The dense foam pad fitted on to the retainer is partially cut through to accommodate a range of fibre counts securing the fibres in place, the foam pad can be sized to accommodate a range of different cable dimensions. The duct managers are manufactured from stainless steel and have been designed to provide a simple solution to blown fibre duct management within the IR Enclosures. The duct manager can be fitted on to the outgoing side of the enclosure and is used to secure and manage blown fibre ducts with a diameter of either 5mm or 7mm. |
| Type | ENIR-DM7MM |
