FM3620 6 Way Fibre Adaptor
Art.-No. 857-40101 | FM3620 |

Copied

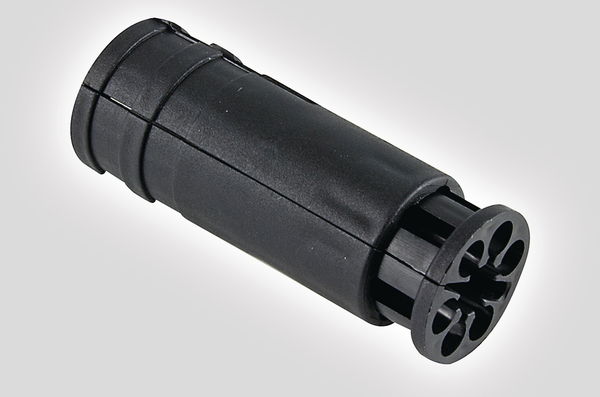

6 Way Adaptor
Fibre Adapters (6, 12 and 24 Fibre versions shown)

    • 3 Adaptor options available
    • Quick and easy to use
    • Maximum number of outlets 24
    • Maximum cable diameter 18mm
    • Internal location points for spiral binding and strength members
    • Moulded recess on outside to grip cable ties to secure cable
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Content Adaptor
    Markers
    Transportation Tubing
    Cable Ties
    Description Fibre Adaptors
    Local order number FM3620
    PART DESCRIPTION FM3620
    Package Content packed in Bag
    Product Family Closure Base Accessories
    Product Group 6 Way Fibre Adaptor
    Short Description FM3620 6 Way Fibre Adaptor
    Technical Description The HellermannTyton range of adaptors offer a simple solution for dividing and managing fibres within a splice closure whilst fitted directly over the cable sheath. The adaptors are manufactured from ABS and the 6 and 12 outlet adaptors can be fitted over a cable sheath with a maximum diameter of 15mm and minimum of 5mm. The 24 outlet adaptor can be fitted over a cable sheath with a maximum diameter of 18mm and a minimum of 5mm.
    Each adaptor is supplied with poly spiral binding and transportation tubing for up to 24 outlets. The 12 and 24 adaptor kits are suitable for use in loop through applications and are supplied with spiral tubing.
    Type FM3620
    Weight/Unit 0.1kg
    Bore Diameter (metric) 4.0
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 85176200
    GTIN-13 / EAN 5022660484025
    Packaging 1 - Height (m) 0.381m
    Packaging 1 - Length (m) 0.254m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0m³
    Packaging 1 - Weight (kg) 0.1kg
    ETIM 7.0 Key EC000752
    ETIM 8.0 Key EC000752
    ETIM 9.0 Key EC000752
