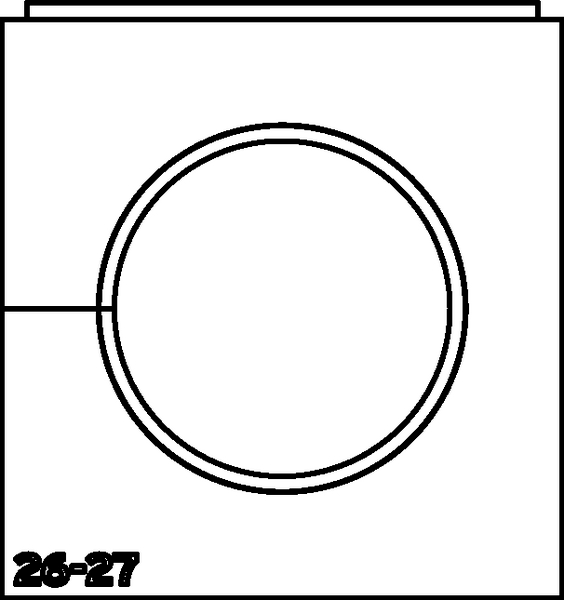

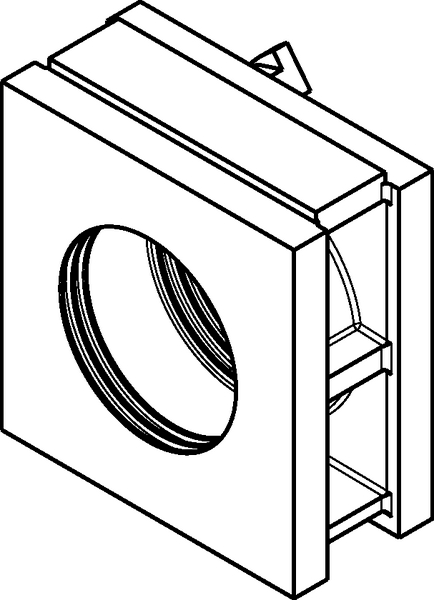

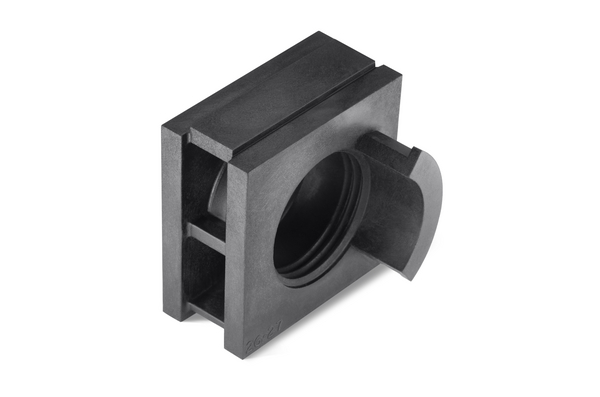

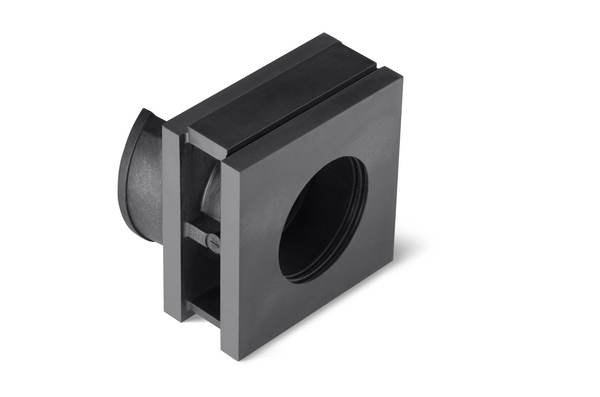

Cable entry system, Insert large, 42.2x42.2x20.0mm, ∅26.0 - 27.0mm, black, 10pcs.
Art.-No. 440-00034 | VP-L_26-27_Ins-sgl-TPE-BK Details

  • Integrated cable diameter tolerance compensation
  • Modular application for both insert sizes (S and L)
  • Integrated strain relief
  • IP 65 and IP 66

Request your individual offer now

Configurator e-Learning
Application VarioPlate cable entry system inserts grommets are used in combination with VarioPlate frames for time and space saving cable installation on all types of panel builder housings and controll boxes. The versatile design covers cable diameter from 3 to 33mm. Inserts grommets are available in one, two, four holes and blindplugs.
Cable ∅ max 27.0mm
Cable ∅ min 26.0mm
Colour Black (BK)
Description VarioPlate Insert Grommet Large Single 26-27 mm
Material Thermoplastic Elastomer (TPE)
PART DESCRIPTION VP-L_26-27_Ins-sgl-TPE-BK
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family VarioPlate Insert Grommet Large Single 26-27 mm
Product Group VarioPlate Cable Entry System
Short Description VarioPlate Insert Grommet Large Single 26-27 mm
Type VP-L_26-27_Ins-sgl
Variant Both sides open
Depth (D) 32.00mm
Height (H) 20.0mm
Length (L) 42.2mm
Weight/Unit 0.03kg
Width (W) 42.2mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66
Operating Temperature -40 °C to +100 °C
ROHS compliant Yes
Self extinguishing Yes
Shelf Life Unlimited
Specifications
Specifications csa-C22.2 No. 94.1, csa-C22.2 No. 94.2, UL 50, UL 50E
UL OCD link Link Link
UL Recognized (US and Canada) Yes
UL-File Number E526974
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026686738
Packaging 1 - Height (m) 0.072m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 10
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00132
Packaging 1 - Weight (kg) 0.349kg
Packaging 1 - Width (m) 0.08m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC000322
ETIM 8.0 Key EC000322
ETIM 9.0 Key EC000322
