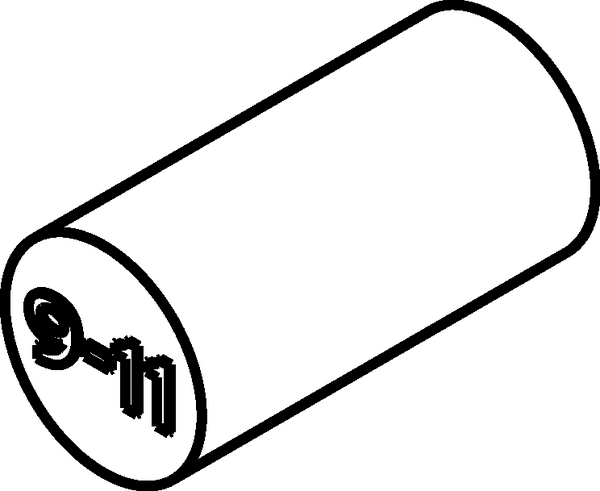

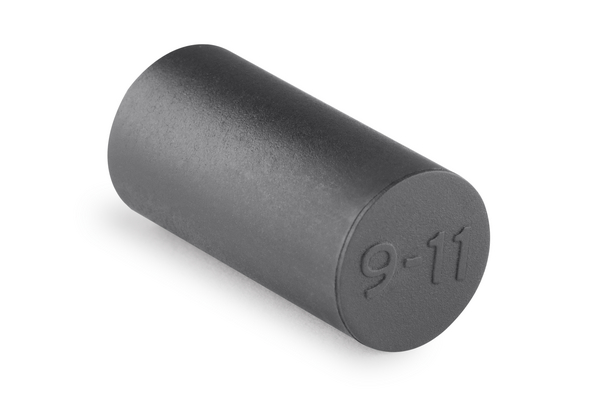

Cable entry system, Blindplug, 20.0mm, Ø9.0 - 11.0mm, black, 20pcs.
Art.-No. 440-00044 | VP_9-11_Blindplug-PL-BK Details

  • Blind grommets are needed to replace the cable grommets that are not equipped with wires
  • The IP protection class is retained

Request your individual offer now

Configurator
Cable ∅ max 11.0mm
Cable ∅ min 9.0mm
Colour Black (BK)
Description VarioPlate Blindplug 9-11 mm
Material Plastic (PL)
PART DESCRIPTION VP_9-11_Blindplug-PL-BK
Pack Cont. 20pcs.
Package Content packed in Bag
Product Family VarioPlate Blindplug 9-11 mm
Product Group VarioPlate Cable Entry System
Short Description VarioPlate Blindplug 9-11 mm
Type VP_9-11_Blindplug
Variant Both sides open
Depth (D) 20mm
Height (H) 20.0mm
Weight/Unit 0.001kg
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66
Operating Temperature -40 °C to +100 °C
ROHS compliant Yes
Self extinguishing Yes
Shelf Life Unlimited
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026686356
Packaging 1 - Height (m) 0.01m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 20
Packaging 1 - Weight (kg) 0.024kg
Packaging 1 - Width (m) 0.02m
