23/04/2024

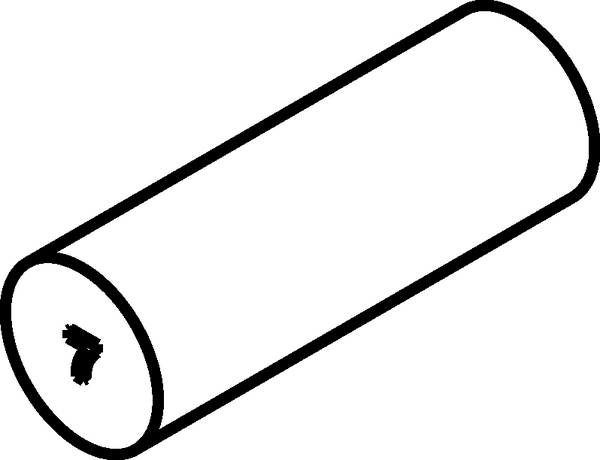

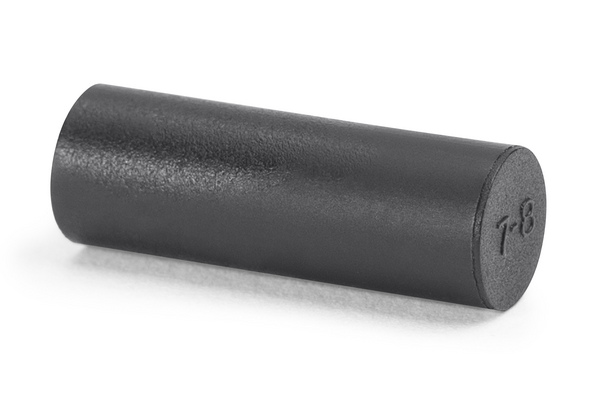

Cable entry system, Blindplug, 20.0mm, Ø7.0 - 7.0mm, black, 20pcs.
Art.-No. 440-00050 | VP_S_7_Blindplug-PL-BK Details

  • Blind grommets are needed to replace the cable grommets that are not equipped with wires
  • The IP protection class is retained

Request your individual offer now

Configurator
Cable ∅ max 7.0mm
Cable ∅ min 7.0mm
Colour Black (BK)
Description VarioPlate Blindplug 7 mm
Material Plastic (PL)
Pack Cont. 20pcs.
Package Content packed in Bag
PART DESCRIPTION VP_S_7_Blindplug-PL-BK
Product Family VarioPlate Blindplug 7 mm
Product Group VarioPlate Cable Entry System
Short Description VarioPlate Blindplug 7 mm
Variant Both sides open
Depth (D) 20mm
Diameter (D) 7mm
Height (H) 20.0mm
Weight/Unit 0.000529kg
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66
Operating Temperature -40 °C to +100 °C
Self extinguishing Yes
Shelf Life Unlimited
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026690445
Packaging 1 - Height (m) 0.006m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 20
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00014
Packaging 1 - Weight (kg) 0.01308kg
Packaging 1 - Width (m) 0.12m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 0.5kg
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC000322
ETIM 8.0 Key EC000322
ETIM 9.0 Key EC000322
