Cable puller tool, deluxe set medium, ∅7mm, 10.0m, black
Art.-No. 897-90001 | CS-SD-PVC-BK Details

  • Professional cable installation tool
  • Enables time savings to be achieved even with challenging installations
  • Rods manufactured from high quality Glass Reinforced Plastic (GRP)
  • Load carrying capacity of 200 kg
  • Range of accessories enabling the installer to illuminate, grip inspect and retrieve.
  • Rods & accessories contained in a useful durable storage bag
Show more

Request your individual offer now

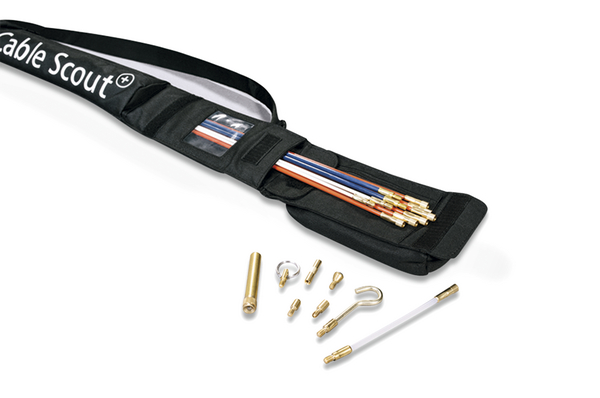

Application Cable Scout+ is a professional cable routing tool which enables installers to easily route cables, saving time, even with the most challenging installations. The rods are manufactured from high quality Glass Reinforced Plastic (GRP), which enables a load carrying capacity of up to 200 kg. Cable Scout+ offers a range of features which allows the installer to illuminate, grip, inspect and retrieve by using the range of accessories. Cable Scout+ is supplied in a useful durable bag which contains the rods and accessories all in one place.
Colour Black (BK)
Content Accessories 15 cm white flexi lead, split ring, gender changer, tuff hook, mini eye, domed bullet, flat bullet, beam, single magnet
Content Rods 2 rods x 1 m (white) 6 rods x 1 m (red) 2 rods x 1 m (blue)
Description Deluxe Set: the most comprehensive set aimed for carrying out larger installations
Flexibility medium
Material Flexible Polyvinyl Chloride (PVC)
PART DESCRIPTION CS-SD-PVC-BK
Pack Cont. 1pc.
Product Family Cable Scout+ Rod Sets
Product Group Cable Installation System - Cable Scout+
Short Description Cable Installation System Deluxe Set
Type CS-SD
Variant Deluxe set
Diameter (D) 7mm
Length (L) 1.0m
Rod Capacity (m) 10.0m
Weight/Unit 0.853804kg
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin CN
Customs Number 82055980
GTIN-13 / EAN 4031026406268
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 1.12m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00591
Packaging 1 - Weight (kg) 0.893804kg
Packaging 1 - Width (m) 0.132m
Packaging 3 - Height (m) 0.245m
Packaging 3 - Length (m) 1.08m
Packaging 3 - Qty 16
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0662
Packaging 3 - Weight (kg) 15.346kg
Packaging 3 - Width (m) 0.25m
Packaging 4 - Height (m) 1.369m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 240
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.314
Packaging 4 - Weight (kg) 251.188kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000167
ETIM 8.0 Key EC000167
ETIM 9.0 Key EC000167
