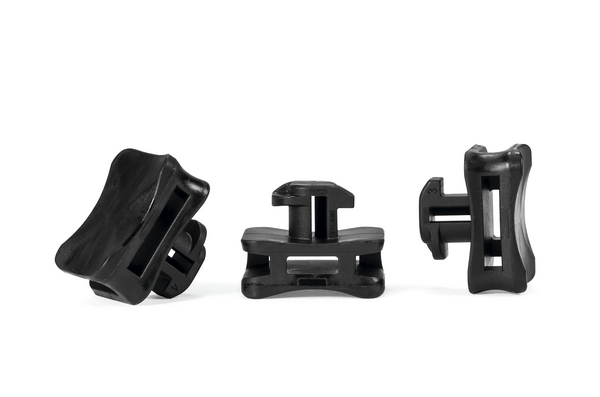

Aluminium frame mount for Item/MiniTec, W=8.0mm, T=4.5mm, black, 25pcs.
Art.-No. 151-03245 | ACFM5W8PT4,5-PA66/6HIRHS-BK Details

  • Quick and easy to install (quarter-turn fixing)
  • 2-way cable tie entry, allowing cables to be fixed lengthways or sideways to the profile
  • Curved design ensures that cables are supported centrally to the mount
  • Secure fixing once installed
  • Suitable for cable ties up to 8 mm wide
Show more
Package size

Request your individual offer now

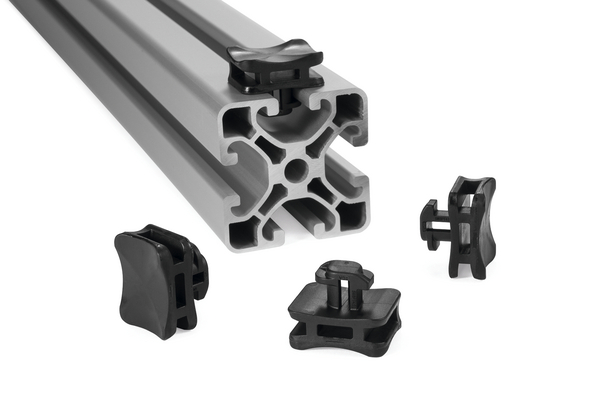

Application Our aluminium frame mounts are specially designed for aluminium construction profiles. Theirs installation and handling is very simple. At every favoured place on the profile just with a quarter turn the mount is firmly fixed. Also it can be easily loosened and repositioned at any time. The mounts are custom developed for several aluminium construction profiles.
Colour Black (BK)
For Ties T50 T80 T120 X80 X120 Q50 Q120
Material Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS)
PART DESCRIPTION ACFM5W8PT4,5-PA66/6HIRHS-BK
Pack Cont. 25pcs.
Package Content packed in Bag
Product Family For ITEM 8 frame
Product Group Fixing elements for T-slotted aluminium frames
Short Description The ACFM5W8PT4.5 is specially designed for the ITEM profile with a T-slot width of 8 mm and external dimensions of 45 mm
Type ACFM5W8PT4,5
Height (H) 9.3mm
Height (H2) 17.3mm
Length (L) 17.5mm
Panel Thickness max. 4.5mm
Strap Width max. (G) 8.0mm
Weight/Unit 0.002468kg
Width (W) 22.5mm
for Panel Thickness min - max 4.5 - 4.5 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026646466
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 25
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00127
Packaging 1 - Weight (kg) 0.067226kg
Packaging 1 - Width (m) 0.265m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.288m
Packaging 3 - Qty 600
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0087
Packaging 3 - Weight (kg) 1.743424kg
Packaging 3 - Width (m) 0.178m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 61200
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 199.99kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
