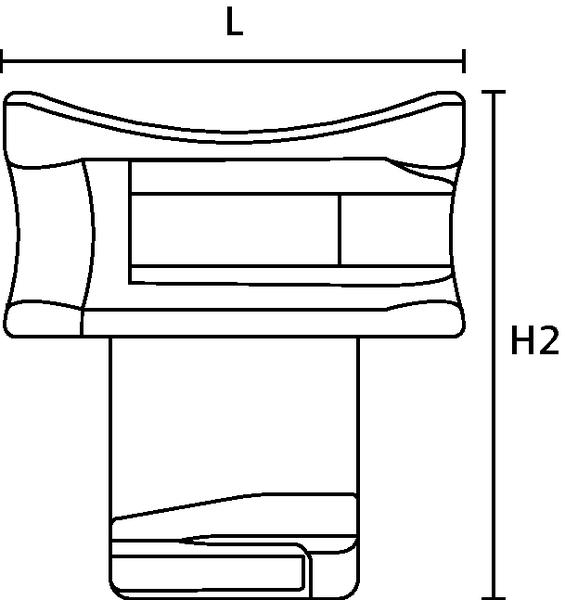

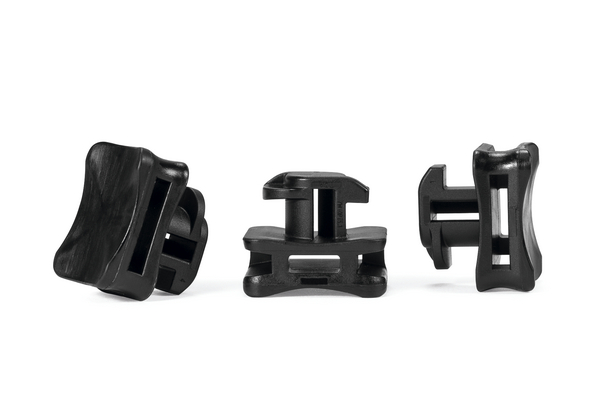

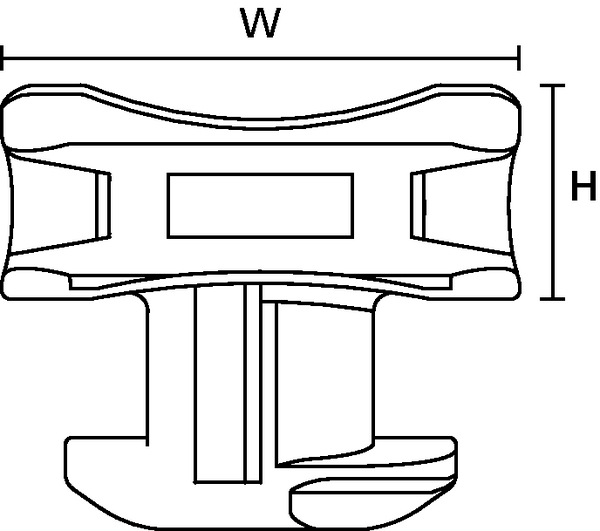

Aluminium frame mount for Item, W=10.0mm, T=5.3mm, black, 25pcs.
Art.-No. 151-03246
| ACFM7W10PT5.3-PA66/6HIRHS-BK
|
Copied

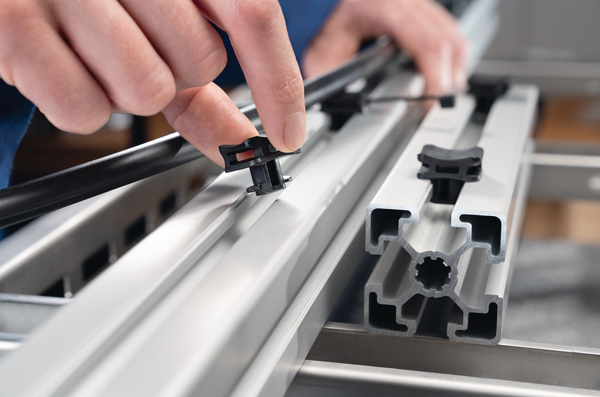

- Quick and easy to install (quarter-turn fixing)

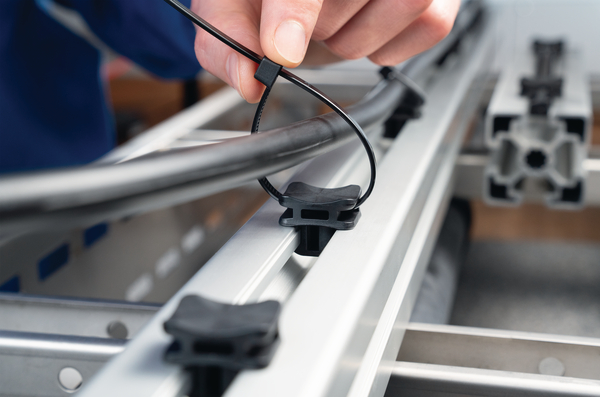

- 2-way cable tie entry, allowing cables to be fixed lengthways or sideways to the profile
- Curved design ensures that cables are supported centrally to the mount
- Secure fixing once installed
- Suitable for cable ties up to 8 mm wide
Show more
Show less
Request quote

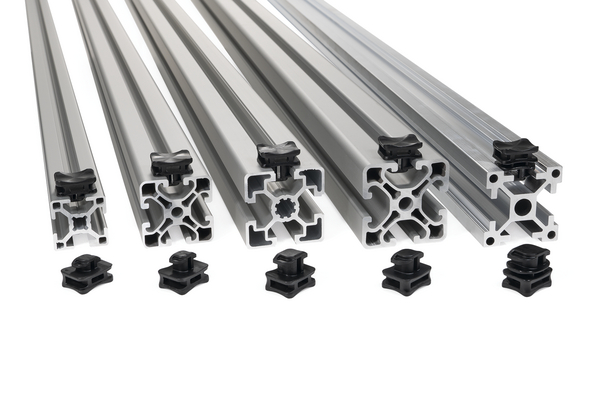

More products in this product group:

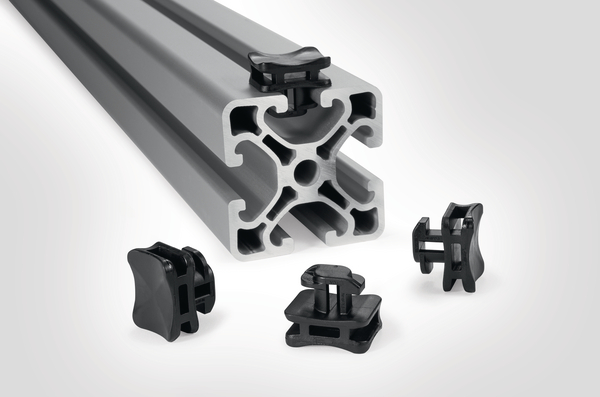

| Application | The ACFM7W10PT5.3 is specially designed for the ITEM profile with a T-slot width of 10 mm and external dimensions of 50 mm. The fact that no mounting hole is necessary, the installation and handling of the ACFM is very simple. The Aluminium frame mount is firmly fixed at the favoured place with a quarter turn and then fits firmly. Can be easily loosened and repositioned at any time. |
| Colour | Black (BK) |
| Compatible with | Item |
| For Ties |
T50 T80 T120 X80 X120 Q50 Q120 |
| Material | Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS) |
| PART DESCRIPTION | ACFM7W10PT5.3-PA66/6HIRHS-BK |
| Package Content | 25pcs. |
| Package Content packed in | Bag |
| Product Family | For ITEM10 frame |
| Product Group | Fixing elements for T-slotted aluminium frames |
| Short Description | The ACFM7W10PT5.3 is specially designed for the ITEM profile with a T-slot width of 10 mm and external dimensions of 50 mm |
| Type | ACFM7W10PT5.3 |
| Weight/Unit | 0.00272kg |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Hazardous Goods | No |
| ROHS compliant | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026646473 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.001272m³ |
| Packaging 1 - Weight (kg) | 0.073526kg |
| Packaging 1 - Width (m) | 0.265m |
| Packaging 3 - Height (m) | 0.17m |
| Packaging 3 - Length (m) | 0.288m |
| Packaging 3 - Qty | 600 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0087m³ |
| Packaging 3 - Weight (kg) | 1.884416kg |
| Packaging 3 - Width (m) | 0.178m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 61200 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 215.392kg |
| Packaging 4 - Width (m) | 0.8m |
