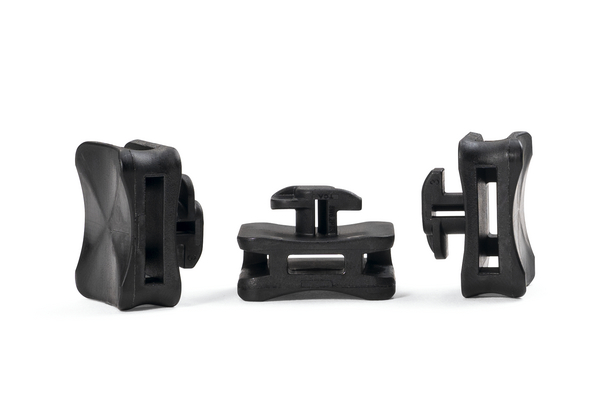

Aluminium frame mount for Item, W=6.2mm, T=2.75mm, black, 25Bag
Art.-No. 151-03249 | ACFM8W6.2PT2.75-PA66/6HIRHS-BK Details

  • Quick and easy to install (quarter-turn fixing)
  • 2-way cable tie entry, allowing cables to be fixed lengthways or sideways to the profile
  • Curved design ensures that cables are supported centrally to the mount
  • Secure fixing once installed
  • Suitable for cable ties up to 8 mm wide
Show more
Package size

Request your individual offer now

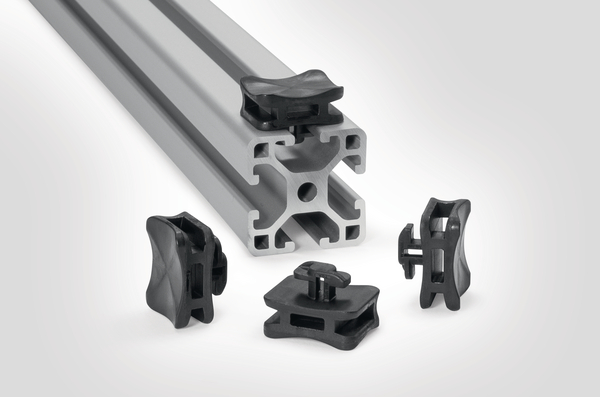

Application The ACFM8W6.2PT2.75 is specially designed for the ITEM profile with a T-slot width of 6 mm and external dimensions of 30 mm. The fact that no mounting hole is necessary, the installation and handling of the ACFM is very simple. The Aluminium frame mount is firmly fixed at the favoured place with a quarter turn and then fits firmly. Can be easily loosened and repositioned at any time.
Colour Black (BK)
For Ties T50 T80 T120 X80 X120 Q50 Q120
Local order number ACFM8W6.2PT3-PA66/PA6HIRHS-BK
Material Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS)
PART DESCRIPTION ACFM8W6.2PT2.75-PA66/6HIRHS-BK
Pack Cont. 25Bag
Package Content packed in Bag
Product Family For ITEM 6 frame
Product Group Fixing elements for T-slotted aluminium frames
Short Description The ACFM8W6.2PT2.75 is specially designed for the ITEM profile with a T-slot width of 6 mm and external dimensions of 30 mm.
Type ACFM8W6.2PT2.75
Height (H) 9.3mm
Height (H2) 15.3mm
Length (L) 17.5mm
Panel Thickness max. 2.75mm
Strap Width max. (G) 8.0mm
Weight/Unit 0.002376kg
Width (W) 22.5mm
for Panel Thickness min - max 2.8 - 2.8 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026646503
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.195m
Packaging 1 - Qty 25
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00051
Packaging 1 - Weight (kg) 0.0644kg
Packaging 1 - Width (m) 0.13m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.288m
Packaging 3 - Qty 600
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0087
Packaging 3 - Width (m) 0.178m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 61200
Packaging 4 - Type pallet
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
