Screw fixing mounts : CTAM1

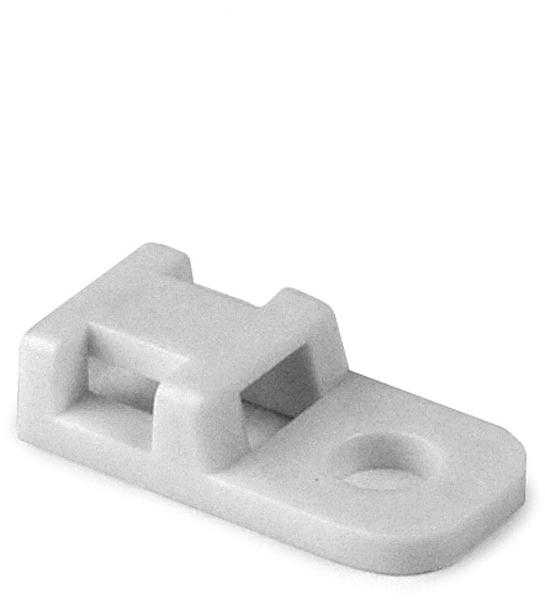

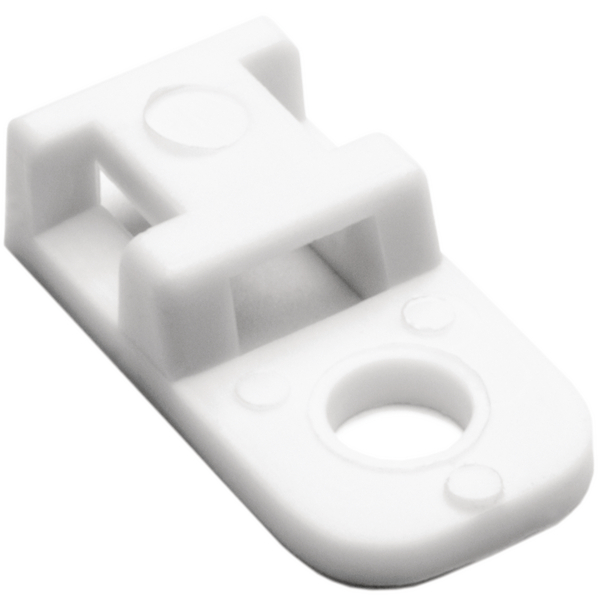

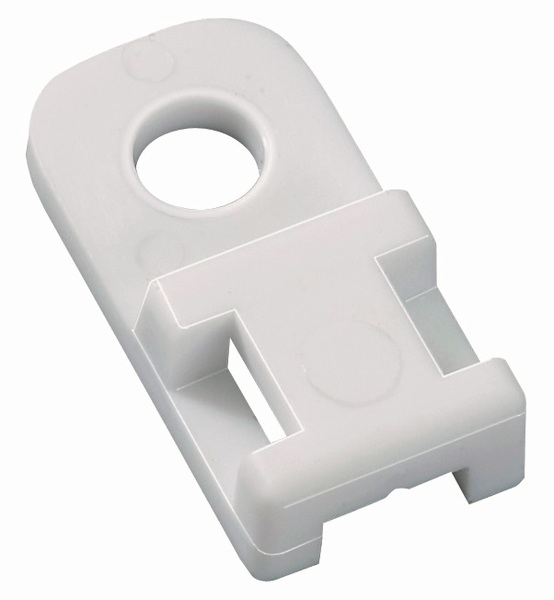

Screw fixing mount 20.4x10.2 mm, white, Article number: 151-31103
Features
- Suitable for applications with minimal space
- Mounted before cable installation and in line with cable

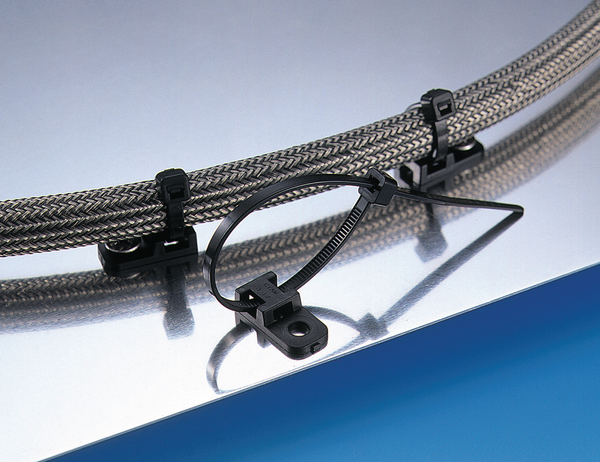

- CTAM has 4-way entry design for use in line or at 90° angle to cable run
Certifications & Approvals
Application
Each of these products offers particular benefits, but all are designed for simple yet robust installation in a wide variety of applications. Particularly used in telecoms equipment, switchgear and control cabinets these cable tie mounts are also used within the aerospace and railway industry.
More products in this product group
Screw fixing mounts >| Colour | White (WH) |
| Fixation Method | Screw Mounting and Rivet |
| Mounting Screw Type | #8 (M4) Screw |
| Pack Cont. | 100pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | CTAM1-PA66-WH |
| Product Family | CTAM-Series for applications where space is limited |
| Product Group | Screw fixing mounts |
| Short Description | Screw fixing mount 20.4x10.2 mm, white |
| Type | CTAM1.NW3P |
|
|
|
| for Hole ∅ (FH) | 4.3 mm |
| Height (H) | 5.1mm |
| Height (H2) | 1.8mm |
| Length (L) | 20.4mm |
| Strap Width max. (G) | 5.0mm |
| Strap Width max. (G) (imperial) | 0.2" |
| Width (W) | 10.2mm |
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Nato number | 5975-12-380-0116 |
| Operating Temperature - °C | -40 °C to +85 °C |
| Prop65 Warning | No |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E64139 |
|
|
|
| EAN / GTIN | 4031026415208 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.21m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00053m³ |
| Packaging 1 - Weight (kg) | 0.052kg |
| Packaging 1 - Width (m) | 0.1m |
| Packaging 3 - Height (m) | 0.215m |
| Packaging 3 - Length (m) | 0.512m |
| Packaging 3 - Qty | 15000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 8.395kg |
| Packaging 3 - Width (m) | 0.315m |
| Packaging 4 - Height (m) | 1.219m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 300000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.17m³ |
| Packaging 4 - Weight (kg) | 188.9kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.052kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| UNSPSC Key | 39121717 |
