Screw Fixing Mounts : CTAM2

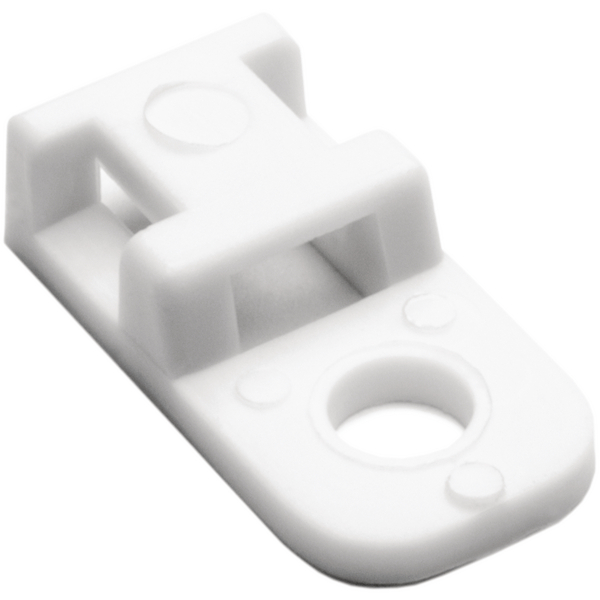

Screw Fixing Mount beige 20.5x10.2 for high temperature applications up to +240 °CArticle number: 151-00758
Features

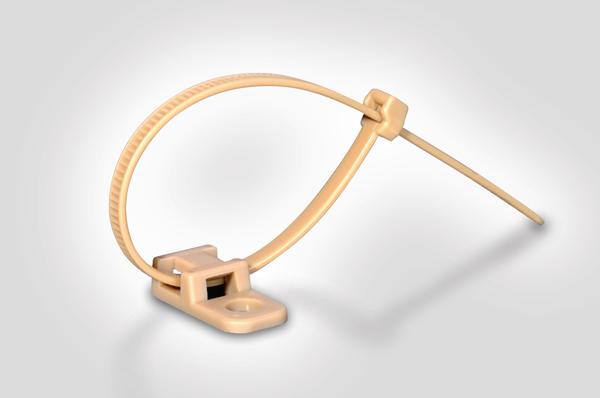

- The CTAM-series offers particular benefits due to its small size and can be used even in compact spaces. CTAM mounts manufactured from PEEK material offer even more benefits. They have been specially designed for the use in hazardous environment. Its suitability for high temperature applications makes it useful for the drilling industry, railway, offshore or automotive industry. The excellent chemical and radium ray resistance is predestined for applications in medical engineering, chemical industry and power stations. Because of this combination of different properties PEEK mounts can replace metal solutions.
Certifications & Approvals
Application
The CTAM-series offers particular benefits due to its small size and can be used even in compact spaces. CTAM mounts manufactured from PEEK material offer even more benefits. They have been specially designed for the use in hazardous environment. Its suitability for high temperature applications makes it useful for the drilling industry, railway, offshore or automotive industry. The excellent chemical and radium ray resistance is predestined for applications in medical engineering, chemical industry and power stations. Because of this combination of different properties PEEK mounts can replace metal solutions.
More products in this product group
Screw Fixing Mounts >| Colour | Beige (BGE) |
| Fixation Method | Screw Mounting and Rivet |
| Mounting Screw Type | #10 (M5) Screw |
| Pack Cont. | 100pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | CTAM2-PEEK-BGE |
| Product Family | CTAM-PEEK for high temperature applications up to +240 °C |
| Product Group | Screw Fixing Mounts |
| Short Description | Screw Fixing Mount beige 20.5x10.2 for high temperature applications up to +240 °C |
| Type | CTAM2-PEEK |
|
|
|
| for Hole ∅ (FH) | 5.2 mm |
| Height (H) | 5.5mm |
| Height (H2) | 1.9mm |
| Length (L) | 20.5mm |
| Strap Width max. (G) | 5.0mm |
| Strap Width max. (G) (imperial) | 0.2" |
| Width (W) | 10.2mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V0 |
| Hazardous good | No |
| Material | Polyetheretherketone (PEEK) |
| Operating Temperature - °C | -55 °C to +240 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 4944387956269 |
| Packaging 1 - Height (m) | 0.015m |
| Packaging 1 - Length (m) | 0.17m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00026m³ |
| Packaging 1 - Weight (kg) | 0.06kg |
| Packaging 1 - Width (m) | 0.1m |
| Packaging 3 - Height (m) | 0.18m |
| Packaging 3 - Length (m) | 0.45m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0251m³ |
| Packaging 3 - Weight (kg) | 3.21kg |
| Packaging 3 - Width (m) | 0.31m |
| Packaging 4 - Height (m) | 1.224m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 150000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.175m³ |
| Packaging 4 - Weight (kg) | 117.3kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.06kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| UNSPSC Key | 39121717 |
