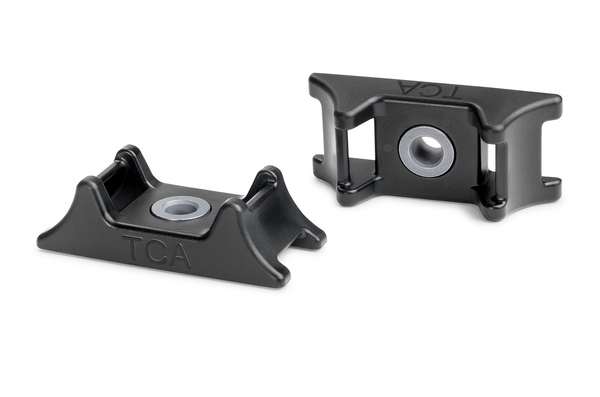

Cable tie mount for screw fixation, Wmax=13.5mm, ⌀M6, ⌀M6, M6 Screw, black, 100pcs.
Art.-No. 151-04125
| DCTMM6B-PA66HIRHS/ST-BK
|
Copied
- Design offers secure alignment to the bundle
- Possible replacement of cushion clamps and/or metal clamps
- Eliminates the needs for multiple sized fix diameter clamps
- Compatible with cable ties up to 13.5 mm wide for heavy duty applications
- High vibration resistance ensures durability and performance
- Easy maintenance of bundle by simply changing the cable tie
- Versions with an integrated bolt (suffix "B") provide additional mechanical strength
Request your individual offer now
Request quote
More products in this product group:
| Application | The DCTM series is the ideal solution for securing cables, wires, and hoses in harsh environments with high vibration. With its two cable tie slots, it offers improved grip for demanding applications and can accommodate multiple cables and wires in large quantities. |
| Colour | Black (BK) |
| Description | Cable tie mount for screw fixation, M6 |
| Fixation Method | Screw Mounting and Rivet |
| Key product features | for multiple routing, removable |
| Local order number | DCTMM6B-PA66HIRHS-BK |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Steel (ST) |
| Mounting Screw Type | M6 Screw |
| PART DESCRIPTION | DCTMM6B-PA66HIRHS/ST-BK |
| Package Content | 100pcs. |
| Package Content packed in | Bag |
| Product Group | Harness clip for heavy duty applications, for screws or threaded bolts |
| Short Description | Cable tie mount for screw fixation, Wmax=13.5mm, ⌀M6, ⌀M6, M6 Screw, black |
| Strap Thickness max. | 2.5mm |
| Type | DCTMM6B |
| Type of connection | Screw connection |
| Weight/Unit | 0.00809kg |
Download
| CAS Number | 7439-92-1 |
| Critical Substance |
Lead in Steel alloy > 0.1 |
| EC Number | 231-100-4 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Max. Torque (Nm) | 9Nm |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026736037 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.315m |
| Packaging 1 - Qty | 150 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00606375m³ |
| Packaging 1 - Weight (kg) | 1.227362kg |
| Packaging 1 - Width (m) | 0.275m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Type | pallet |
| Packaging 4 - Width (m) | 0.8m |
