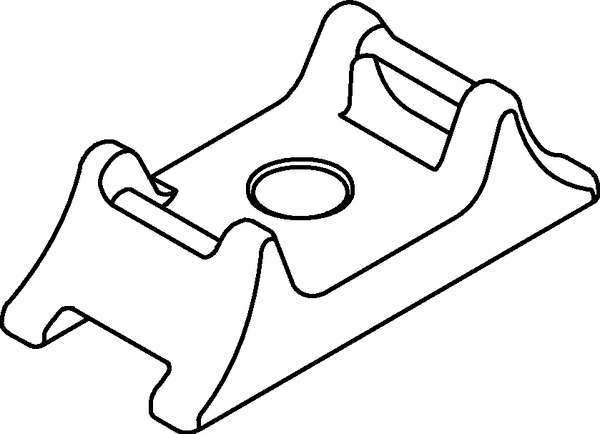

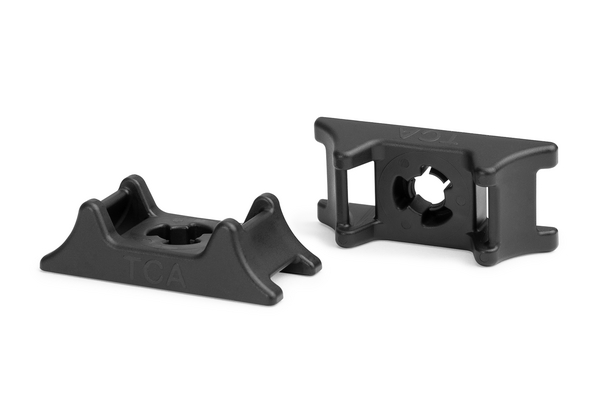

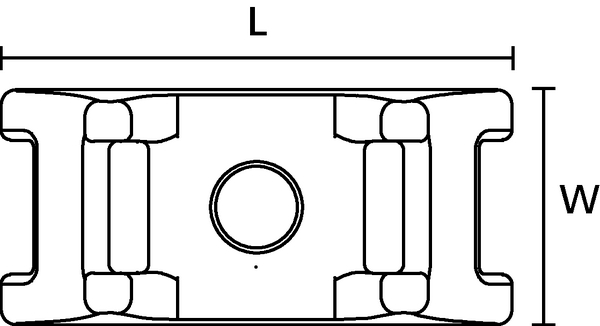

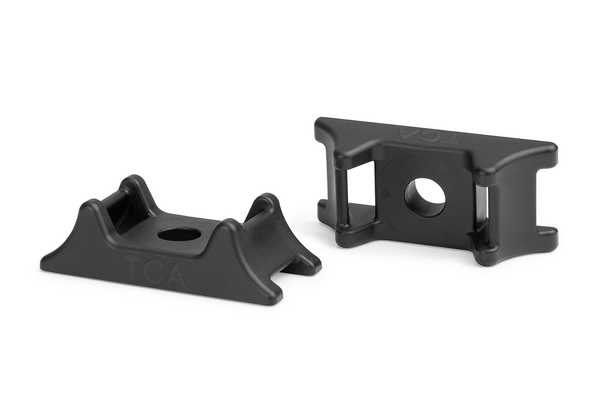

Cable tie mount for screw fixation, Wmax=13.5mm, ⌀8.3 mm, black, 150pcs.
Art.-No. 151-03955
| DCTMM8-PA6GF30-BK
|
Copied
- Design offers secure alignment to the bundle
- Possible replacement of cushion clamps and/or metal clamps
- Eliminates the needs for multiple sized fix diameter clamps
- For heavy duty cable ties up to 13.5 mm width
- Easy maintenance of bundle by simply changing the cable tie
Show more
Show less
Request quote
More products in this product group:
Harness clip for heavy duty applications, for screws or threaded bolts
This product is part of:
| Application | These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry. |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Local order number | DCTMM8-PA6GF30-BK |
| Material | Polyamide 6, glass-fibre reinforced (PA6GF30) |
| PART DESCRIPTION | DCTMM8-PA6GF30-BK |
| Package Content | 150pcs. |
| Package Content packed in | Bag |
| Product Group | Harness clip for heavy duty applications, for screws or threaded bolts |
| Type | DCTMM8 |
| Weight/Unit | 0.006922kg |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026697864 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.27m |
| Packaging 1 - Qty | 150 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0059535m³ |
| Packaging 1 - Weight (kg) | 1.052162kg |
| Packaging 1 - Width (m) | 0.315m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 1500 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 11.48762kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.204m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.156m³ |
| Packaging 4 - Weight (kg) | 251.78kg |
| Packaging 4 - Width (m) | 0.8m |
