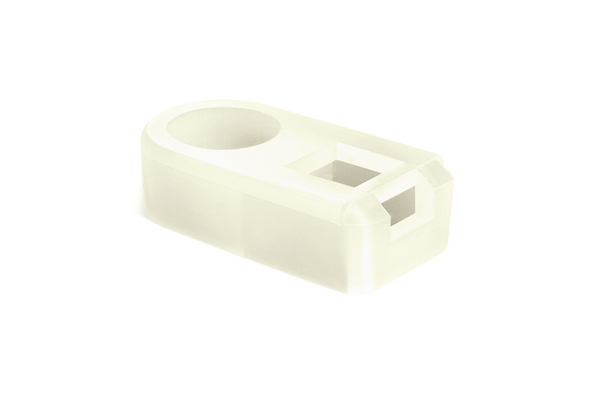

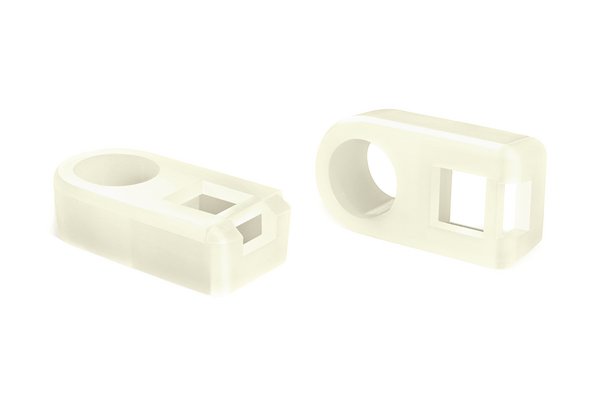

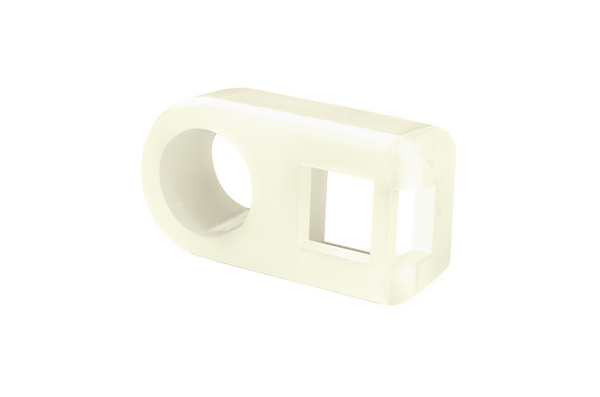

Cable tie mount for screw fixation, Ø5.5 mm, natural, 500pcs.
Art.-No. 151-61319 | FH30-PA66-NA Details

  • Screwable mounts for fixing cable sideways
  • Ideal for securing large, heavier bundles
  • Suitable for cable ties up to 4.6 mm wide

Request your individual offer now

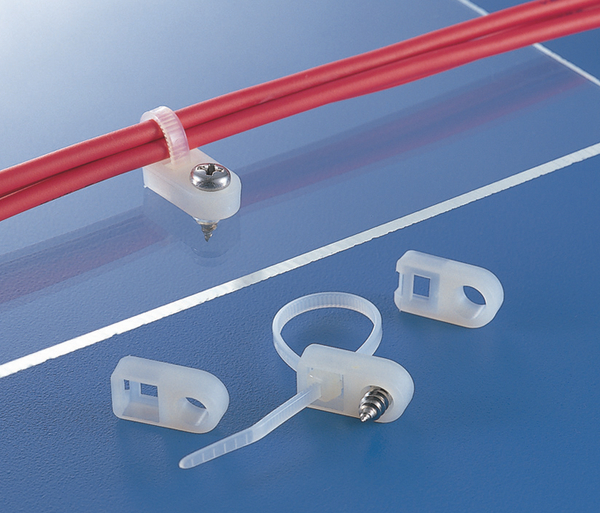

Application In areas with limited space these mounting bases allow the cable to be offset from the fixing hole, and can be installed in the equipment prior to the cable installation. A major cost saving can be made using these products as they will allow the use of many different sizes of standard cable ties without the need to stock a wide range of specific fixing ties.
Application Tool MK9P, MK9P w/ Upper air, MK10-SB, EVO9SP, EVO9HT
Colour Natural (NA)
Fixation Method Screw Mounting and Rivet
Local order number FH30.NN6P
Material Polyamide 6.6 (PA66)
Pack Cont. 500pcs.
Package Content packed in pcs.
PART DESCRIPTION FH30-PA66-NA
Product Family LKM / CL / FH with curved design for sideways fixing
Product Group Screw fixing mounts
Short Description Screw Fixing Mounts with curved design 17.9x9.5 mm, sideways fixing, natural

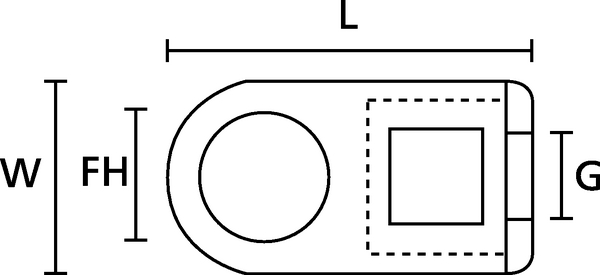

for Hole ∅ (FH) 5.5 mm

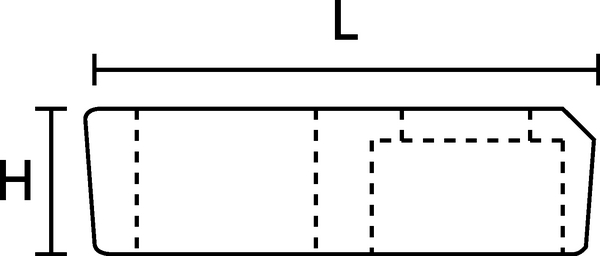

Height (H) 4.7mm
Length (L) 17.9mm
Strap Width max. (G) 3.5mm
Weight/Unit 0.0005kg
Width (W) 9.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Nato number 5975-12-361-3685
Operating Temperature -40 °C to +85 °C
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660303203
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 0.303478kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 30000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 18.82868kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 540000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 359.4kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
