Cable tie mounts with high performance adhesive : FMB4APT-A

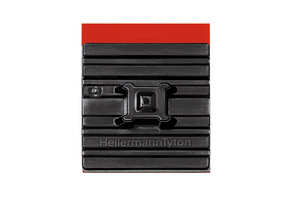

Cable tie mount 28x28 mm, high performance adhesive, heat stabilised, black, Article number: 151-02219
Features
- Flexible Mount for round and angled surfaces
- FMB mounts with homogeneous system of acrylic adhesive
- Allows greater design freedom and offers uniform stress distribution along with weight reduction
- Innovative fixing solution for high and low energy surfaces
- Protection foil with finger lift for easy peel off
- 4-way entry for cable tie for quicker and more flexible installation
- FlexTack Cable tie mounts are also suitable for high energy surfaces like metal or glass.
Certifications & Approvals
Application
FlexTack cable tie mounts can be successfully applied to a variety of high- and low-energy surfaces such as glass, metals (including painted, varnished or powder-coated surfaces) as well as plastics. FlexTack provides a reliable fixing solution where it is impractical to use screws or bolts. The unique design in combination with the special acrylate adhesive makes professional cable management easy.
FlexTack-Series FMB for round and angled surfaces is suitable for following markets and industries
-
Automotive Industry
-
Electrical Installation
-
Electronics Industry
-
Industrial Automation
-
Mining Industry
-
OEM Industry
-
Offshore Industry
-
Rail Transportation Sector
-
Shipbuilding
-
Telecommunication
-
Truck Heavy Equipment
-
Wind Energy Sector
-
Panel Building
More products in this product group
Cable tie mounts with high performance adhesive >| Colour | Black (BK) |
| Fixation Method | Self-Adhesive |
| Pack Cont. | 100pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | FMB4APT-A-PA66HS-BK |
| Product Family | FlexTack-Series FMB for round and angled surfaces |
| Product Group | Cable tie mounts with high performance adhesive |
| Short Description | Cable tie mount 28x28 mm, high performance adhesive, heat stabilised, black |
| Type | FMB4APT-A PA66HS BK 100 |
|
|
|
| Height (H) | 6.3mm |
| Length (L) | 28.0mm |
| Strap Width max. (G) | 5.4mm |
| Strap Width max. (G) (imperial) | 0.2" |
| Width (W) | 28.0mm |
| Adhesive | Acrylate with base of acrylic foam |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 (excluding adhesive) |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Prop65 Warning | No |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN | 4031026603025 |
| Packaging 1 - Height (m) | 0.12m |
| Packaging 1 - Length (m) | 0.155m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00502m³ |
| Packaging 1 - Weight (kg) | 0.17964kg |
| Packaging 1 - Width (m) | 0.27m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 9.632kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 11.65m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 11.184m³ |
| Packaging 4 - Weight (kg) | 213.2kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.396lbs |
| Weight | 0.1702kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
