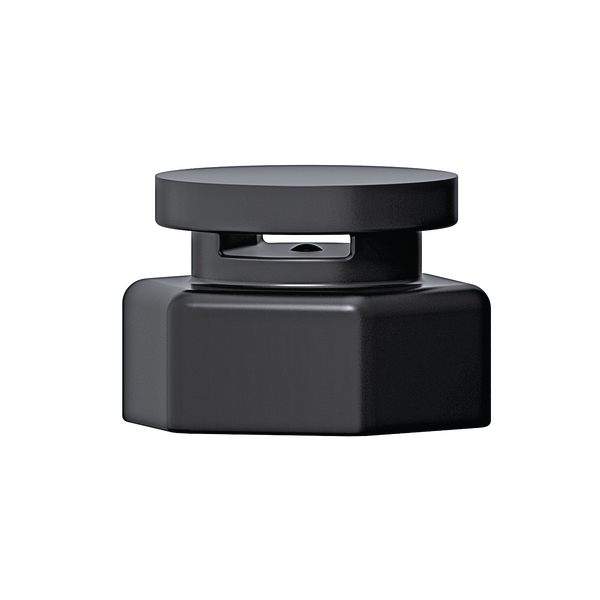

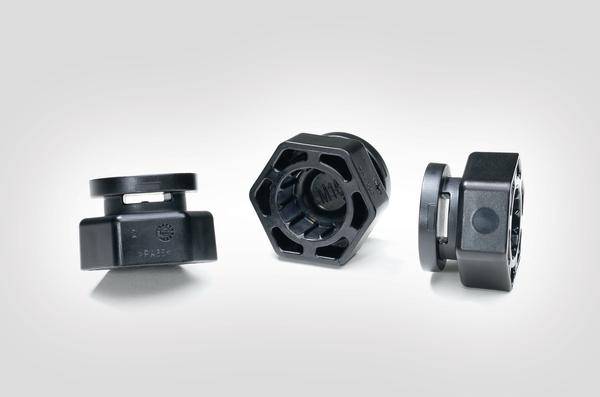

Cable tie mount for stud, Wmax=8.2mm, ⌀M16, black, 500pcs.
Art.-No. 151-01383 | HDBN16-PA66HIRHS-BK |

Copied

    • Bundle runs directly above the stud with definded stand-off from the panel
    • Useable for metric thread M16
    • Securely and firm hold even with vibrations
    • X-Series cable ties are for special applications
    • Also suitable in combination with the SFTP mounting plate
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Local order number HDBN16_PA66HIRHS_BK
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION HDBN16-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Short Description Heavy Duty Bolt Nut for M16 studs.
    Type HDBN16
    Height (H) 20.0mm
    Length (L) 27.0mm
    Strap Width max. (G) 8.2mm
    Stud ⌀ M16
    Weight/Unit 0.007262kg
    Width (W) 27.0mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026524122
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 250
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 1.837315kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 1500
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 11.62389kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 300.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
