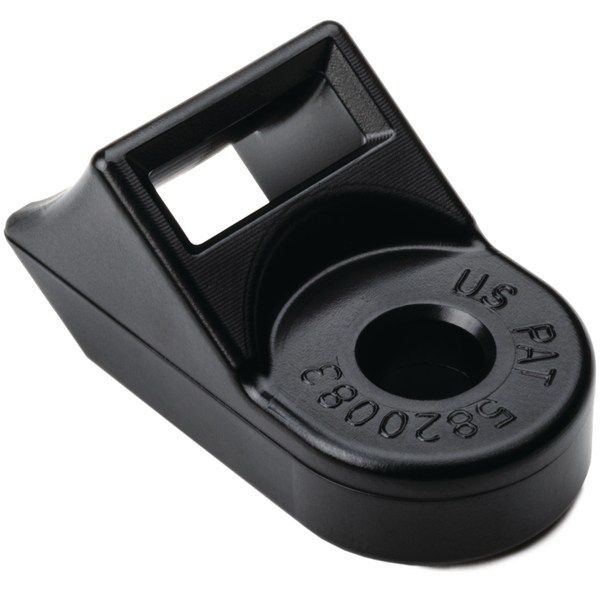

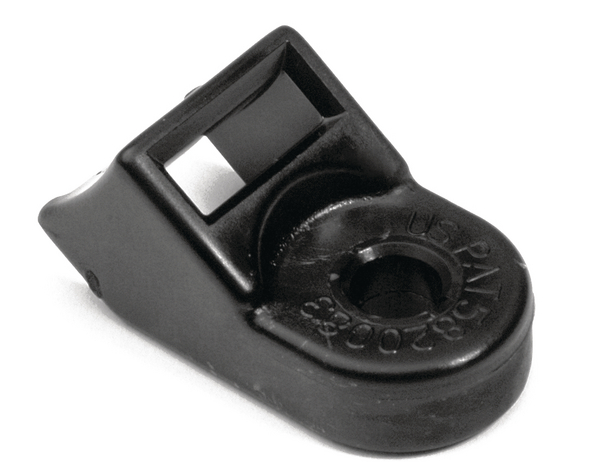

Harness clip for heavy duty applications, for screws or threaded bolts : HDM25
Torque Mount 35,8x19 mm, high impact modified, black, Article number: 151-00437
Features
- Design offers secure alignment to the bundle
- Possible replacement of cushion clamps and/or metal clamps
- Eliminates the needs for multiple sized fix diameter clamps
- For heavy duty cable ties up to 12.7 mm width
- High tightening torque through metal bushing
- Easy maintenance of bundle by simply changing the cable tie
Certifications & Approvals
Application
These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry.
More products in this product group
Harness clip for heavy duty applications, for screws or threaded bolts >| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Mounting Screw Type | #1/4" (M6) Screw |
| Pack Cont. | 100pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | HDM25-PA66HIRHSUV-BK |
| Product Family | Standard Torque Mounts |
| Product Group | Harness clip for heavy duty applications, for screws or threaded bolts |
| Short Description | Torque Mount 35,8x19 mm, high impact modified, black |
| Type | HDM250HIRC2 |
|
|
| for Hole ∅ (FH) | 6.2 mm |
| Height (H) | 16.7mm |
| Height (H2) | 8.0mm |
| Length (L) | 36.3mm |
| Strap Width max. (G) | 12.7mm |
| Strap Width max. (G) (imperial) | 0.5" |
| Stud ∅ | 6.2 mm |
| Stud ∅ (imperial) | 0.25" |
| Width (W) | 19.3mm |
| Width (W2) | 13.3mm |
| CE Certification | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Maximum Torque (kgf-cm) | 132.5kgf-cm |
| Maximum Torque (lbf-In) | 9.583lbf-ft |
| Operating Temperature - °C | -40 °C to +110 °C |
| Prop65 Warning | No |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| EAN / GTIN | 4031026313184 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 0.422978kg |
| Packaging 1 - Width (m) | 0.44m |
| Packaging 3 - Height (m) | 0.215m |
| Packaging 3 - Length (m) | 0.51m |
| Packaging 3 - Qty | 2500 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0351m³ |
| Packaging 3 - Weight (kg) | 11.063kg |
| Packaging 3 - Width (m) | 0.32m |
| Packaging 4 - Height (m) | 1.004m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 50000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.964m³ |
| Packaging 4 - Weight (kg) | 242.25kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.00912lbs |
| Weight | 0.3695kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| UNSPSC Key | 39121717 |
