Harness Clip for Heavy Duty Applications, for Screws or threaded Bolts HDM320

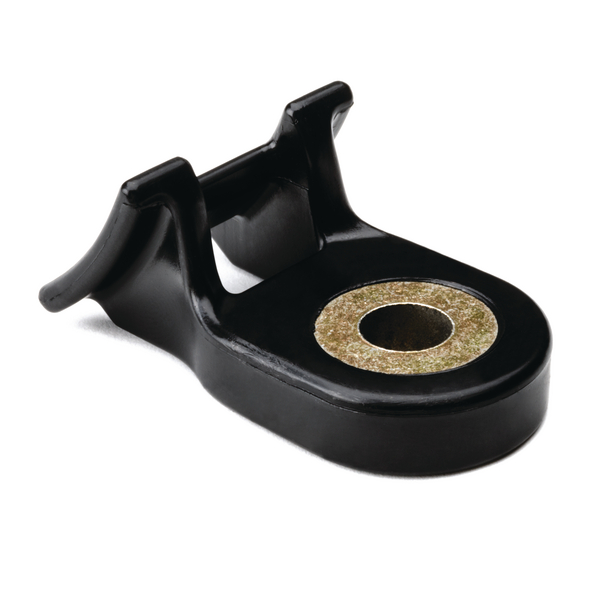

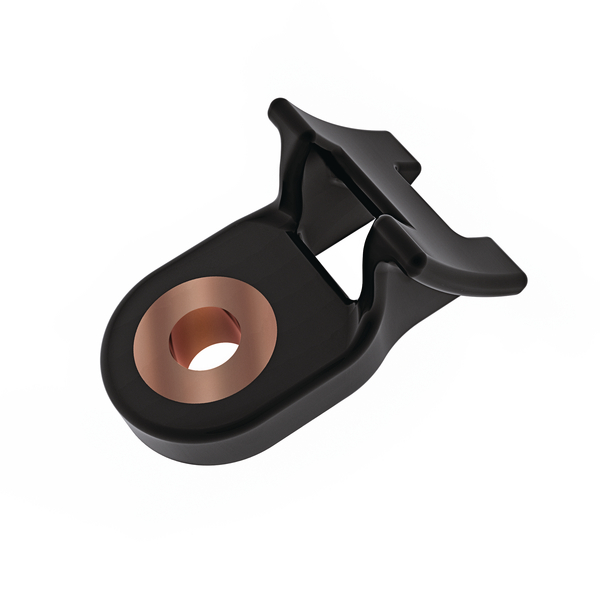

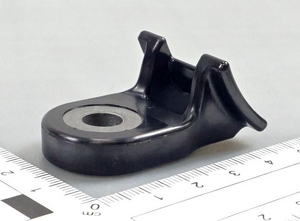

High Torque Mounts (metal bushing), Article number: 151-02094

Features

  • Design offers secure alignment to the bundle
  • Possible replacement of cushion clamps and/or metal clamps
  • Eliminates the needs for multiple sized fix diameter clamps
  • For heavy duty cable ties up to 12.7 mm width
  • High tightening torque through metal bushing
  • Easy maintenance of bundle by simply changing the cable tie

Certifications & Approvals

Application

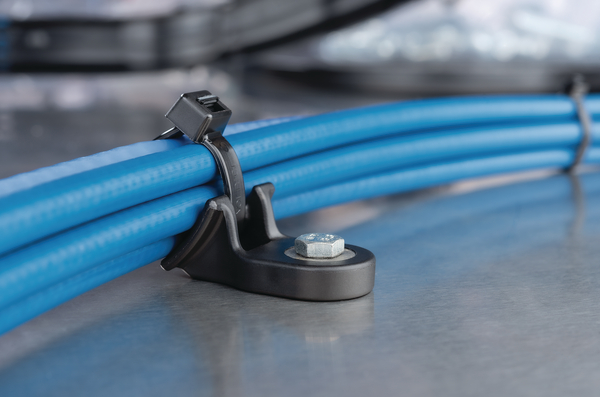

These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or argriculture industry.

High Torque Mounts (metal bushing) is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Fixing mount 47x25 mm black
Fixation Method Screw Mounting and Rivet
Mounting Screw Type 5/16" (M8) Screw
Pack Cont. 500pcs.
Package Quantity per Carton
PART DESCRIPTION HDM320-PA66HIRHSUV-BK
Product Family High Torque Mounts (metal bushing)
Product Group Harness Clip for Heavy Duty Applications, for Screws or threaded Bolts
Type 151-02094

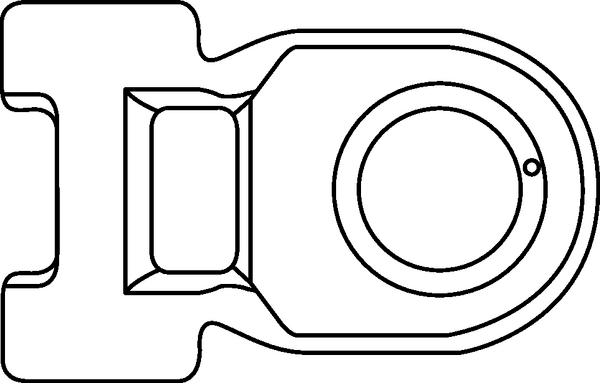

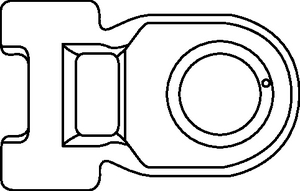

for Hole ∅ (FH) 8.31 mm
Height (H) 20.7mm
Length (L) 47.0mm
Strap Width max. (G) 12.7mm
Strap Width max. (G) (imperial) 0.5"
Width (W) 25.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Maximum Torque (kgf-cm) 1576.0kgf-cm
Maximum Torque (lbf-In) 114.0lbf-ft
Operating Temperature - °C -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026612058
Packaging 1 - Height (m) 0.14m
Packaging 1 - Length (m) 0.429m
Packaging 1 - Qty 500

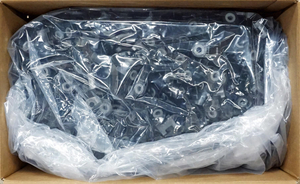

Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01562
Packaging 1 - Weight (kg) 9.574kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.158m
Packaging 3 - Length (m) 0.435m
Packaging 3 - Qty 500
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0183
Packaging 3 - Weight (kg) 9.8735kg
Packaging 3 - Width (m) 0.266m
Packaging 4 - Height (m) 1.093m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 21000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.049
Packaging 4 - Weight (kg) 435.687kg
Packaging 4 - Width (m) 0.8m
Weight 0.0446lbs
Weight 9.454kg
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
UNSPSC Key 39121717
