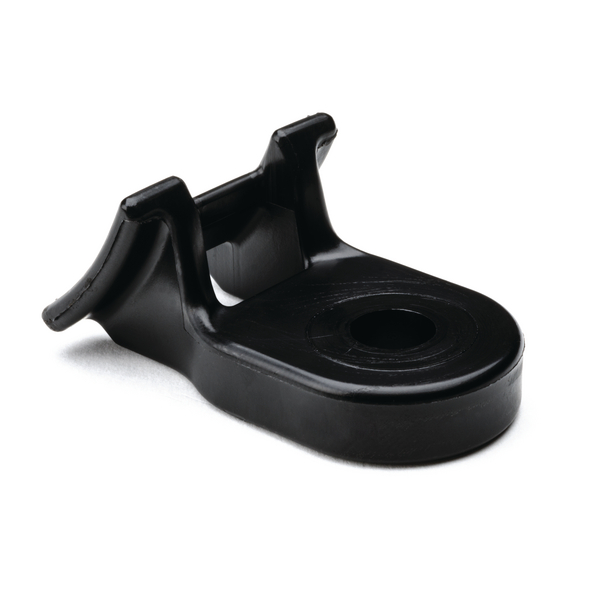

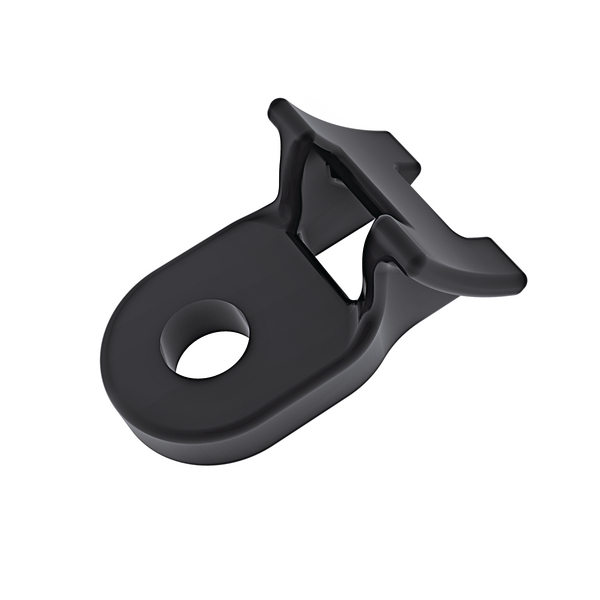

Harness clip for heavy duty applications, for screws or threaded bolts : HDM321
Medium torque mount 46x24 mm, high impact, heat and UV stabilised, blackArticle number: 151-07100
Features
- Secure alignment to the bundle due to H-design
- Pre-fixing of clip with integrated nose (standard types)
- For cable ties up to 12.7 mm wide
- Easy maintenance of bundle by simply changing the cable tie
Certifications & Approvals
Application
These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry.
More products in this product group
Harness clip for heavy duty applications, for screws or threaded bolts >| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Mounting Screw Type | 5/16" (M8) Screw |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | HDM321-PA66HIRHSUV-BK |
| Product Family | Medium Torque Mounts |
| Product Group | Harness clip for heavy duty applications, for screws or threaded bolts |
| Short Description | Medium torque mount 46x24 mm, high impact, heat and UV stabilised, black |
| Type | HDM321BHIHS-HSW-BN-D1 |
|
|

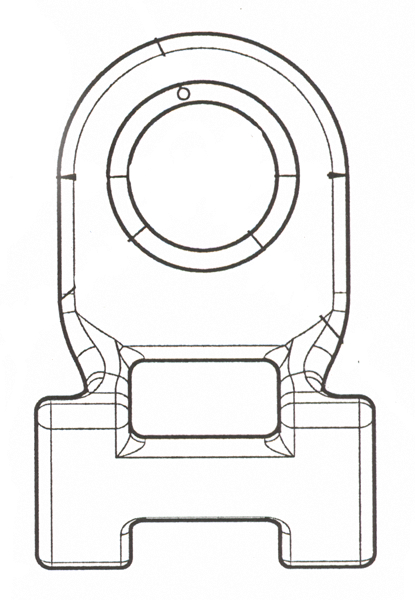

| for Hole ∅ (FH) | 8.31 mm |
| Height (H) | 20.7mm |
| Length (L) | 46.0mm |
| Strap Width max. (G) | 12.7mm |
| Strap Width max. (G) (imperial) | 0.50" |
| Width (W) | 24.0mm |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Maximum Torque (kgf-cm) | 553kgf-cm |
| Maximum Torque (lbf-In) | 40lbf-ft |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Prop65 Warning | No |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN | 4031026333502 |
| Packaging 1 - Height (m) | 0.358m |
| Packaging 1 - Length (m) | 0.592m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.04239m³ |
| Packaging 1 - Weight (kg) | 3.350001kg |
| Packaging 1 - Width (m) | 0.2m |
| Packaging 3 - Height (m) | 0.158m |
| Packaging 3 - Length (m) | 0.435m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0183m³ |
| Packaging 3 - Weight (kg) | 3.650001kg |
| Packaging 3 - Width (m) | 0.266m |
| Packaging 4 - Height (m) | 1.09m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 21000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.046m³ |
| Packaging 4 - Weight (kg) | 174.3kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.01902lbs |
| Weight | 3.35kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| UNSPSC Key | 39121717 |
